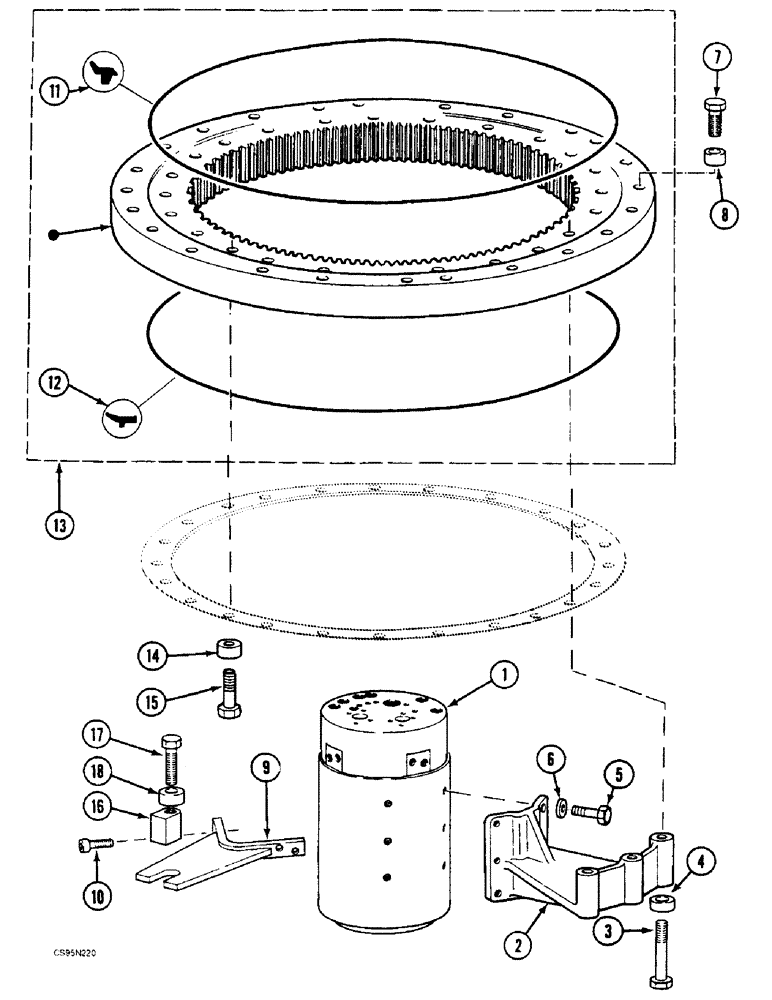

Запчасти Case 688BCK (9A-02) - SWING COMPONENTS, 688B CK (120301-) (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

JOINT TURNING SEE FIGURE: 7-8

1шт.

2

N2346173

SUPPORT

82983 CASTED TYPE VERSION

1шт.

2

Z154927

SUPPORT

82983 FABRICATED TYPE VERSION

1шт.

3

X1633872

SCREW

M20 x 150

3шт.

4

H5428789

WASHER

21 x 7 x 35

3шт.

5

V933819

BOLT,Hex, M12 x 55, 8.8, Full Thd

6шт.

6

S4328731

WASHER

12.5 x 24 x 30

6шт.

7

87015557

BOLT,Hex, M20 x 100mm, Cl 10.9

24шт.

8

U4528718

SHIM

21 x 40 x 35

24шт.

9

W7628292

STOP LOCK

PLATE

1шт.

10

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

4шт.

11

M8046009

GASKET

1шт.

12

W9646059

GASKET

1шт.

13

W2239921

SLEWING RING

1шт.

14

U4528718

SHIM

21 x 40 x 35

21шт.

15

87015557

BOLT,Hex, M20 x 100mm, Cl 10.9

21шт.

16

K5120361

LARGE PIN

PIN, LARGE

1шт.

17

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

1шт.

18

K4328747

WASHER

21 x 14 x 35

1шт.
