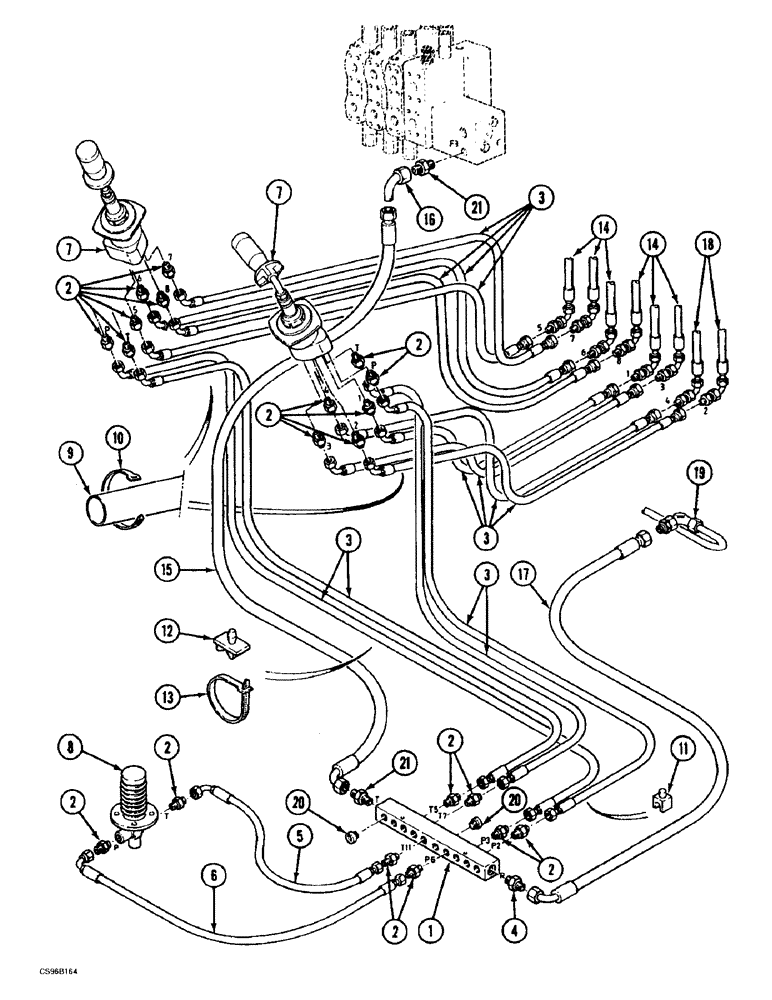

Запчасти Case 688BCK (8D-02) - CIRCUIT - OPERATORS COMPARTMENT, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

A5837768

BLOCK ASSY.

1шт.

2

E3237530

UNION

20шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

3

Z8031967

HOSE

1800MM

12шт.

4

G3237532

UNION

1шт.

S2230418

GASKET

15.7 x 20.9 x 1.5

1шт.

5

W5931904

HOSE

500MM

1шт.

6

B6531955

HOSE

630MM

1шт.

7

REF

INSTRUCTION

BLOCK SEE FIGURE: 8D-6

2шт.

8

T4743537

PUMP, HYDRAULIC

1шт.

9

B4931937

LOOM

CABLE SLEEVE

2шт.

10

N51946

CLAMP

COLLAR 258MM

1шт.

11

S2036942

SUPPORT

1шт.

12

G3036926

BASE

1шт.

13

V336923

CLAMP

COLLAR 117MM

1шт.

14

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-4

1шт.

15

X5931997

HOSE

1600MM, 82935 688B CK (120301-120305)

1шт.

15

U6531903

HOSE

1600MM, 82935 688 CK (120306-)

1шт.

16

Q1737020

ANGLE

82935 688B CK (120301-120305)

1шт.

16

R1737021

ANGLE

82935 688 CK (120306-)

1шт.

17

B8031969

HOSE

1400MM

1шт.

18

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-8

1шт.

19

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-6

1шт.

20

U2537447

PLUG

M14 x 1.5MM

9шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

21

G3237532

UNION

2шт.

S2230418

GASKET

15.7 x 20.9 x 1.5, 82935 688B CK (120301-120305)

1шт.

21

K4837530

FITTING

UNION

2шт.

S2230418

GASKET

15.7 x 20.9 x 1.5, 82935 688 CK (120306-)

1шт.
