Запчасти Case 688BCK (8C-22) - CONTROL VALVE SECTION - BUCKET, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

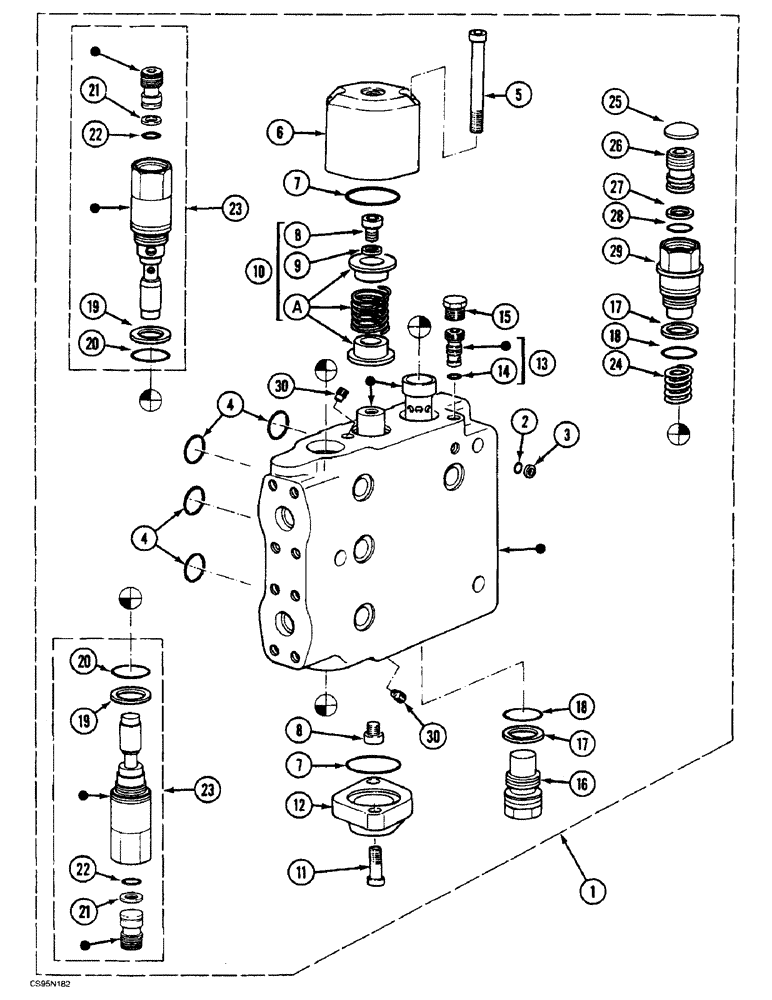

Схема запчастей Case 688BCK - (8C-22) - CONTROL VALVE SECTION - BUCKET, 688B CK (120301-) (07) - HYDRAULIC SYSTEM
8
23
15
30
12
8
28
7
30
19
20
17
4
19
11
17
9
24
2
23
7
18
16
1
20
13
14
21
29
26
21
27
18
4
6
5
22
22
10
3
25

Артикул

Название

Примечание

Количество

1

A5143398

DISTRIBUTOR

CONTROL VALVE

1шт.

2

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1.8 x 12.5

1шт.

3

D3628828

BACK-UP RING

1шт.

4

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2.65 x 28

4шт.

5

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

6

F2340462

CAP

1шт.

7

S2230464

O-RING

2.65 x 38.7

2шт.

8

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

9

V1945382

WASHER

1шт.

10

P4043689

SET

1шт.

11

Q732909

BOLT,Hex, M8 x 25, 8.8

2шт.

12

G2340463

CAP

1шт.

13

K2950564

CARTRIDGE

1шт.

14

T1730422

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1.78 x 4.47

1шт.

15

C3037405

PLUG

1шт.

16

D3037406

PLUG

1шт.

17

N1245232

RING

BUSHING

2шт.

18

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2.65 x 25

2шт.

19

N1245232

RING

BUSHING

1шт.

20

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2.65 x 25

1шт.

21

M1245231

BACK-UP RING

1шт.

22

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2.65 x 14

1шт.

23

P3143676

VALVE, PRESSURE RELI

EF SHOCK ABSORBER

2шт.

24

A2838177

SPRING

1шт.

25

E2340461

BLANK-OFF PLUG

1шт.

26

G3143669

SPARE PART SET

1шт.

27

M1245231

BACK-UP RING

1шт.

28

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2.65 x 14

1шт.

29

D2340460

CAP

1шт.

30

B4243225

JET

2шт.

Выбрано товаров: 30
