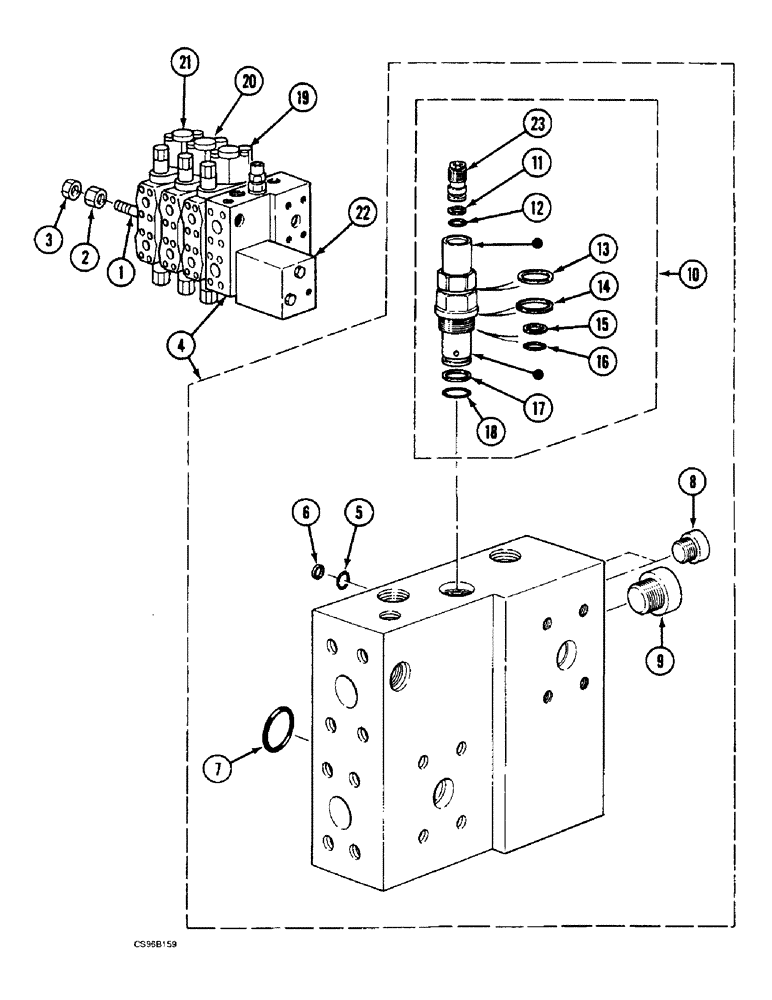

Запчасти Case 688BCK (8C-14) - CONTROL VALVE - ATTACHMENT, 688B CK (120301-120375) (07) - HYDRAULIC SYSTEM

1

R2527738

STEM

3шт.

2

Q34169

NUT

M16

3шт.

3

U34564

NUT

M16

3шт.

4

Q5243301

LARGE PLATE

PLATE, LARGE INLET, 82941 ORDER: L5243366

1шт.

5

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1.8 x 12.5

1шт.

6

D3628828

BACK-UP RING

1шт.

7

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2.65 x 28

4шт.

8

F5237411

PLUG M16X1,5MM

2шт.

R2230417

GASKET

13.8 x 18.9 x 1.5

1шт.

9

A2537429

PLUG

M27 x 2.0MM

1шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

10

S5243303

VALVE, PRESSURE RELI

EF 82941 ORDER: D5243313

1шт.

11

J2445207

RING

BACK-UP

1шт.

12

U1730492

O-RING

1.78 x 8.48

1шт.

13

E3330427

GASKET

1шт.

14

D3330426

GASKET

1шт.

15

C1145264

BACK-UP RING

1шт.

16

G3330429

GASKET

2.62 x 11.91

1шт.

17

L2445209

RING

BACK-UP

1шт.

18

F3330428

GASKET

2.62 x 15.34

1шт.

19

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 8C-20

1шт.

20

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 8C-22

1шт.

21

REF

INSTRUCTION

CONTROL VALVE SEE FIGURE: 8C-24

1шт.

22

REF

INSTRUCTION

POPPET, VALVE SEE FIGURE: 8C-26

1шт.

23

V3733011

SET SCREW

1шт.
