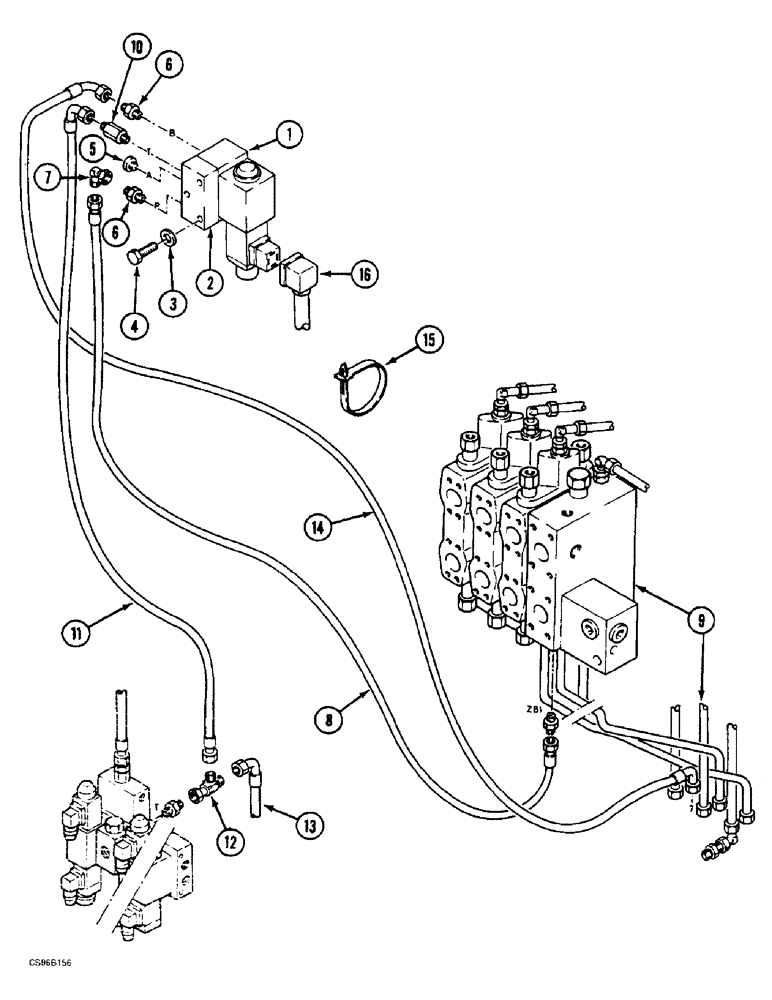

Запчасти Case 688BCK (8C-10) - CIRCUIT - ANTI-COLLISION, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-34

1шт.

2

J4723311

LARGE PLATE

PLATE, LARGE

1шт.

3

V3528794

WASHER

8.25 x 6 x 20

3шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

5

U2537447

PLUG

M14 x 1.5MM

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

6

E3237530

UNION

2шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

7

N1737018

ANGLE

1шт.

8

Z5431955

HOSE

1600MM

1шт.

9

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-4

1шт.

10

K3237581

UNION

1шт.

R7046042

GASKET

11.5 x 16.5 x 1.5

1шт.

11

B6531955

HOSE

630MM

1шт.

12

Z937295

TEE

1шт.

13

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 8C-8

1шт.

14

K5431942

HOSE

1250MM

1шт.

15

N51946

CLAMP

COLLAR 258MM

1шт.

16

REF

INSTRUCTION

CIRCUIT SEE FIGURE: 4-42

1шт.
