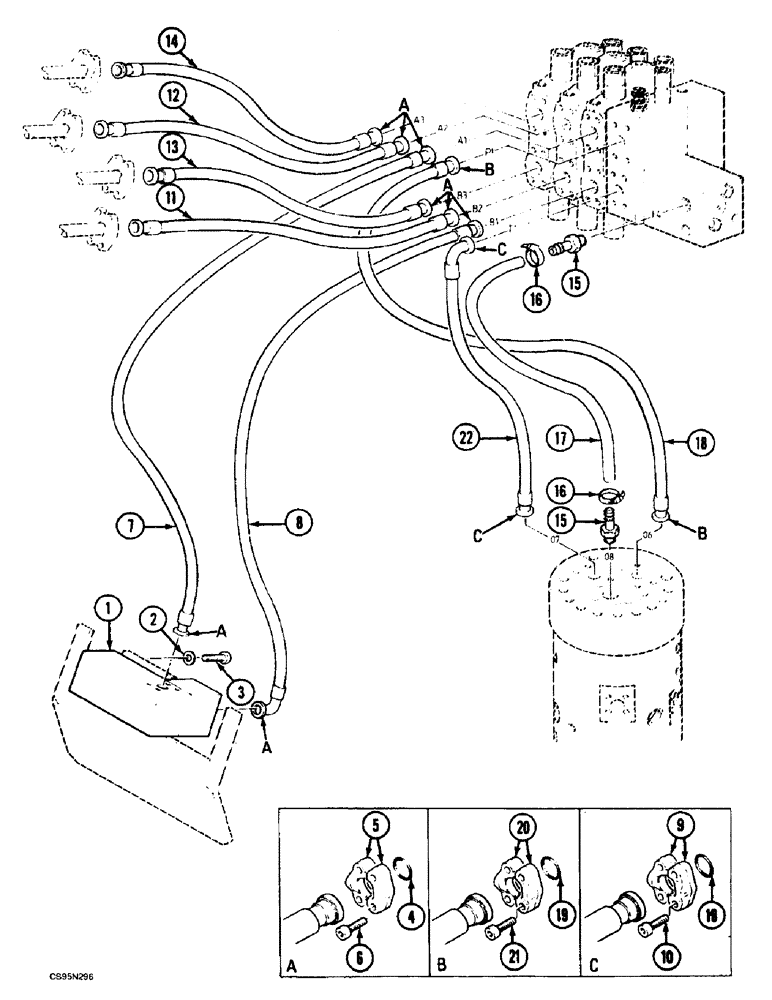

Запчасти Case 688BCK (8C-02) - CIRCUIT - VALVE BANK PARTITION, 688B CK (120301-) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

BLOCK SEE FIGURE: 8C-30

1шт.

2

K4328747

WASHER

21 x 14 x 35

2шт.

3

374890

BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd

2шт.

4

L1130483

O-RING

3.53 x 24.99

8шт.

5

C4024266

CLAMP

HALF

16шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

32шт.

7

Z5931952

HOSE,18.6mm ID x 1000mm L

1000MM, 82963 688B CK (120301-120398)

1шт.

7

W8131946

HOSE

900MM, 82963 688B CK (120399-)

1шт.

8

C5431935

HOSE,19mm ID x 800mm L

800MM

1шт.

9

J4024272

BRACKET

HALF CLAMP

4шт.

10

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

8шт.

11

C5931978

HOSE,19mm ID x 1250mm L

1250MM

1шт.

12

Z5931952

HOSE,18.6mm ID x 1000mm L

1000MM

1шт.

13

C5931978

HOSE,19mm ID x 1250mm L

1250MM

1шт.

14

Z5931952

HOSE,18.6mm ID x 1000mm L

1000MM

1шт.

15

B4837545

FITTING

2шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

16

Q36998

COLLAR CLAMP

25-40MM

2шт.

17

D1103635

PIPE

82935 ORDER LENGTH: 800MM

1шт.

18

T5431973

HOSE

1000MM

1шт.

19

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

4шт.

20

D4024267

SHIN

HALF CLAMP

4шт.

21

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

22

V7331913

HYDRAULIC HOSE

680MM

1шт.
