Запчасти Case 688 (36) - CONTROL VALVE

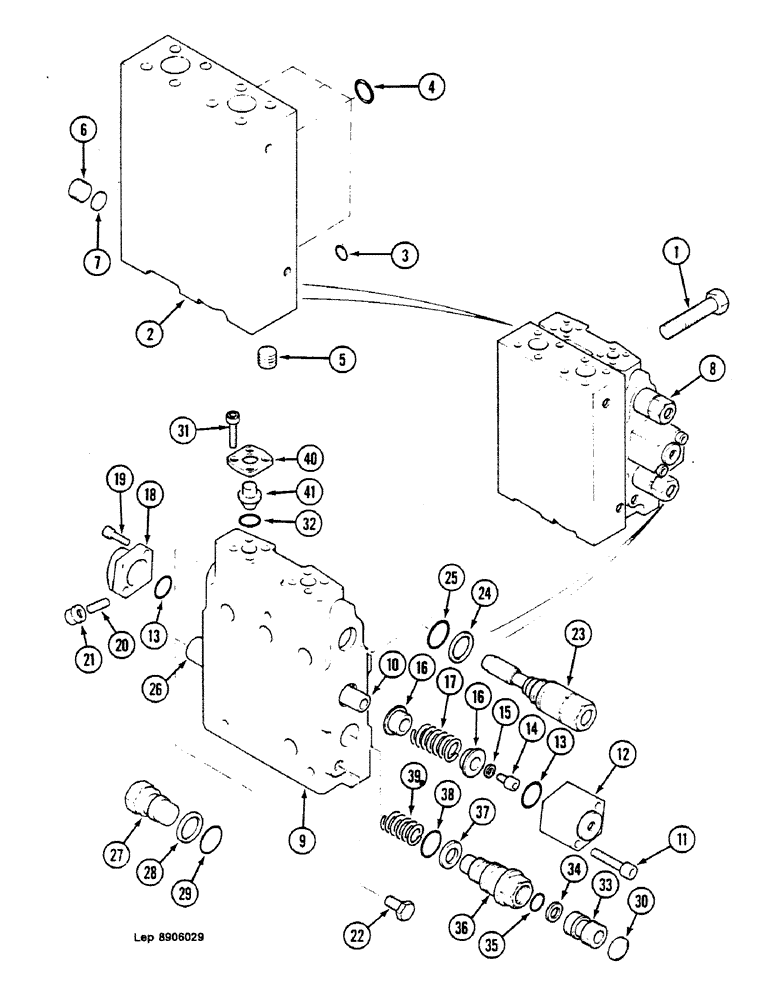

Схема запчастей Case 688 - (36) - CONTROL VALVE
16
6
15
24
2
8
13
28
13
25
14
39
29
27
41
11
30
18
34
23
5
3
9
37
26
21
31
33
36
7
32
35
38
12
4
16
22
20
1
17
19
40
10

Артикул

Название

Примечание

Количество

1

S1232977

SCREW

M16 x 90

3шт.

X3143638

LARGE PLATE

PLATE, LARGE consists of 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, order X3143638

1шт.

3

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

4шт.

5

M3037414

PLUG

1шт.

6

E737453

PLUG

1шт.

7

R645050

HOLE PLUG BUTTON

1шт.

8

X3343692

DISTRIBUTOR

BLOCK selector, consists of 9 - 41

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK selector, order X3243692

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE spool, order X3243692

1шт.

11

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

12

F2340462

CAP

1шт.

13

S2230464

O-RING

2шт.

14

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

15

V1945382

WASHER

1шт.

16

S7646228

CUPEL

2шт.

17

A38295

SPRING

1шт.

18

N3240436

CAP

1шт.

19

Q732909

BOLT,Hex, M8 x 25, 8.8

2шт.

20

W3333042

STUD

1шт.

21

Q2434541

NUT

1шт.

22

C3037405

PLUG

1шт.

L3143696

SHOCK ABSORBER

consists of 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER shock, order L3143696

1шт.

24

N1245232

RING

bushing

1шт.

25

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE spool, order X3243692

1шт.

27

D3037406

PLUG

2шт.

28

N1245232

RING

bushing

2шт.

29

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

30

E2340461

BLANK-OFF PLUG

1шт.

31

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

32

L1130483

O-RING

1шт.

33

G3143669

SPARE PART SET

1шт.

34

M1245231

BACK-UP RING

1шт.

35

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

36

D2340460

CAP

1шт.

37

N1245232

RING

bushing

1шт.

38

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

39

H1538155

SPRING

1шт.

40

R4024256

SHIN

BRACKET

1шт.

41

W5327832

BLANK-OFF PLUG

1шт.

Выбрано товаров: 43
