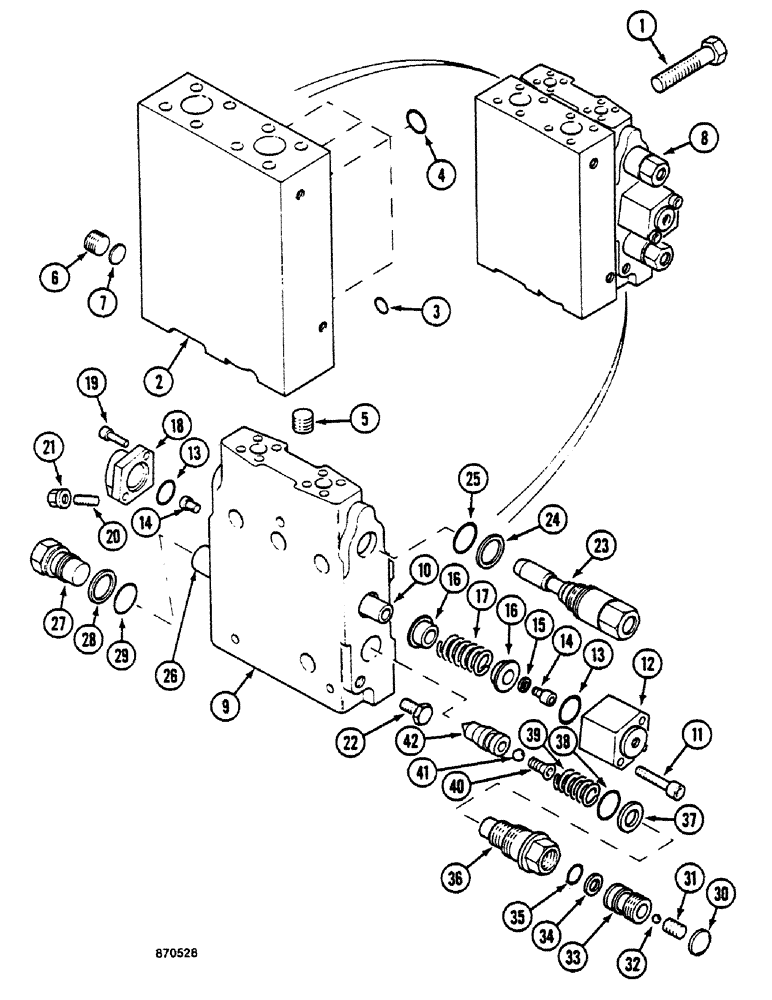

Запчасти Case 688 (32) - CONTROL VALVE

1

X32957

SCREW

M16 x 90

3шт.

2

X3143638

LARGE PLATE

PLATE, LARGE consists of 3 - 7

1шт.

3

U2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

V2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

4шт.

5

M3037414

PLUG

1шт.

6

E737453

PLUG

1шт.

7

R645050

HOLE PLUG BUTTON

1шт.

8

S3343618

DISTRIBUTOR

BLOCK, selector, consists of 9 - 42

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, order S3343618

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL, order S3343618

1шт.

11

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

12

F2340462

CAP

1шт.

13

S2230464

O-RING

2шт.

14

K1432932

SCREW,Hex, M8 x 10, 10.9

2шт.

15

V1945382

WASHER

1шт.

16

S7646228

CUPEL

2шт.

17

A38295

SPRING

1шт.

18

T5140379

CAP

1шт.

19

Q732909

BOLT,Hex, M8 x 25, 8.8

M8 x 25, 10.9

2шт.

20

W3333042

STUD

1шт.

21

Q2434541

NUT

1шт.

22

C3037405

PLUG

1шт.

23

L3143696

SHOCK ABSORBER

consists of 24 and 25

2шт.

24

N1245232

RING

bushing

1шт.

25

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL, order S3343618

1шт.

27

D3037406

PLUG

1шт.

28

N1245232

RING

bushing

2шт.

29

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

30

E2340461

BLANK-OFF PLUG

1шт.

31

W3333065

SCREW

1шт.

32

W31001

BALL

1шт.

33

F7946229

SPARE PART SET

1шт.

34

M1245231

BACK-UP RING

1шт.

35

Q2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

36

U2340475

CAP

1шт.

37

N1245232

RING

bushing

2шт.

38

R2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

39

H1538155

SPRING

1шт.

40

X3333043

SCREW

1шт.

41

X31002

BALL

1шт.

42

K7946210

PISTON

1шт.
