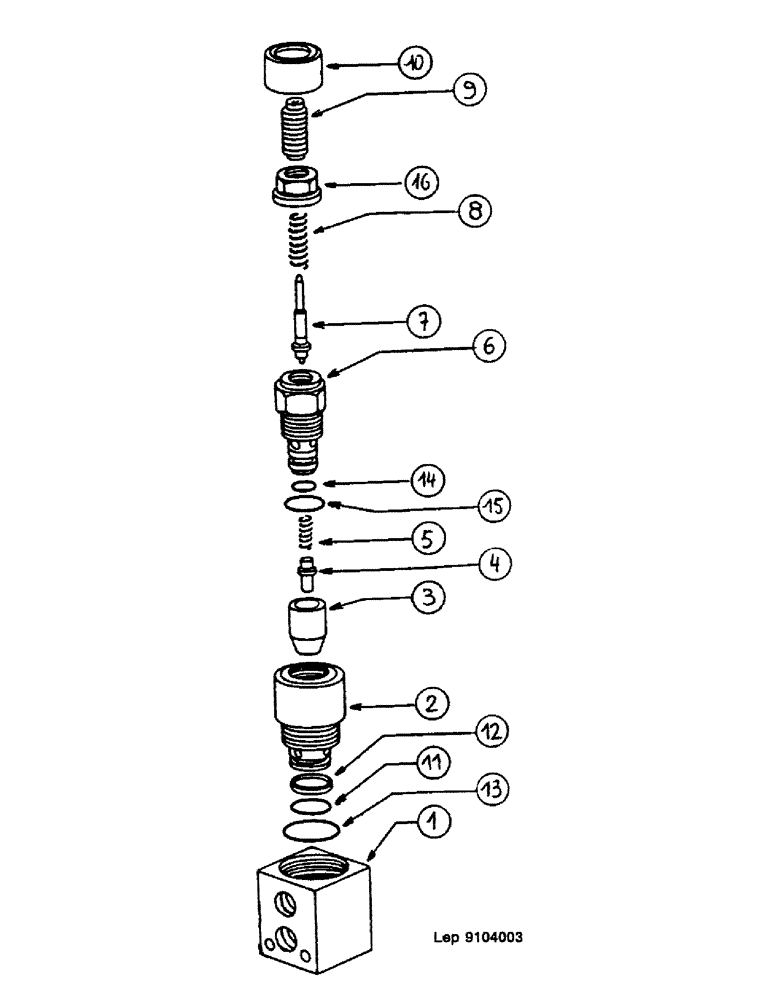

Запчасти Case 688 (30) - VALVE BLOCK

P3143630

CARTRIDGE

consists of 2 - 16

1шт.

1

X4743357

BASIC BLOCK

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, order P3143630

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, order P3143630

1шт.

4

NSS

NOT SOLD SEPARAT

GUIDE, order P3143630

1шт.

5

B1038221

SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, order P3143630

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE, order P3143630

1шт.

8

D1038223

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE, order P3143630

1шт.

10

NSS

NOT SOLD SEPARAT

CAP

1шт.

P5449633

SEAL PACKAGE

consists of 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, order P5449633

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, order P5449633

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, order P5449633

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, order P5449633

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING, order P5449633

1шт.

16

NSS

NOT SOLD SEPARAT

NUT, order P5449633

1шт.
