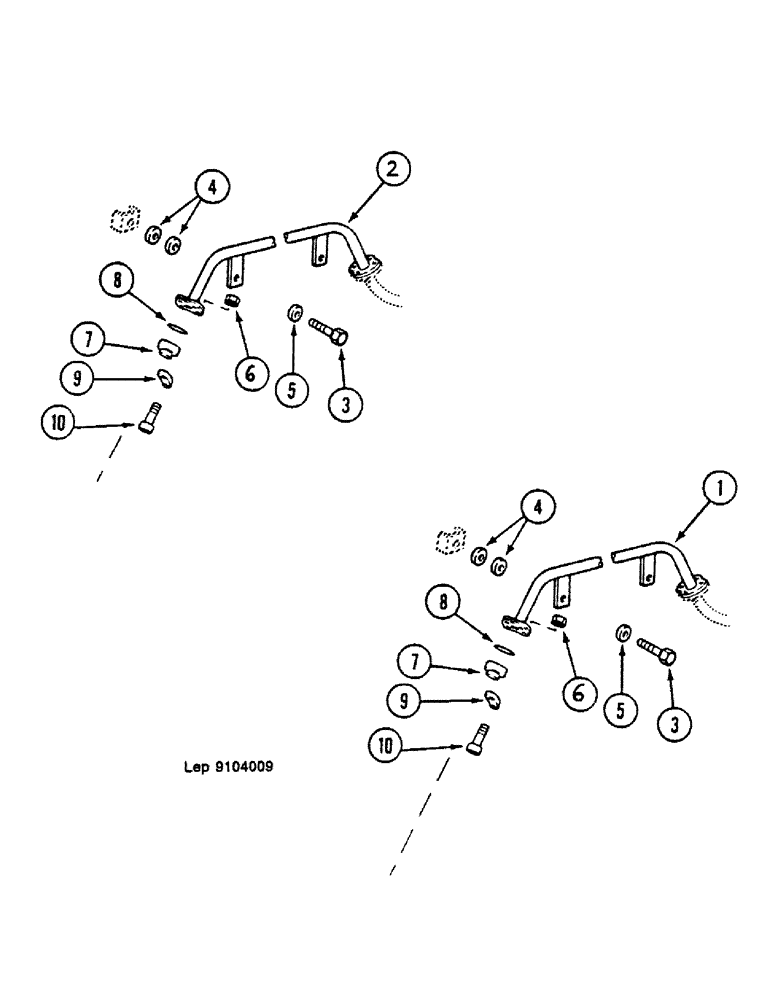

Запчасти Case 688 (26) - DIPPERSTICK HYDRAULIC CIRCUIT (1.60M-2.10M-2.20M)

1

D9047628

PIPE

SPARE PART on arm 1.60 M

1шт.

2

K9047657

PIPE, on arm 2.10M - 2.20M

1шт.

3

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

2шт.

4

W3528795

WASHER

10.25 x 7 x 25

8шт.

5

R4328730

WASHER

10.25 x 20 x 25

2шт.

6

86500689

NUT,M10 x 1.5, Cl 10

8шт.

7

W5327832

BLANK-OFF PLUG

1шт.

8

L1130483

O-RING

1шт.

9

C4024266

CLAMP

half

4шт.

10

H732994

SCREW,Hex Soc Hd, M10 x 50, 10.9

8шт.
