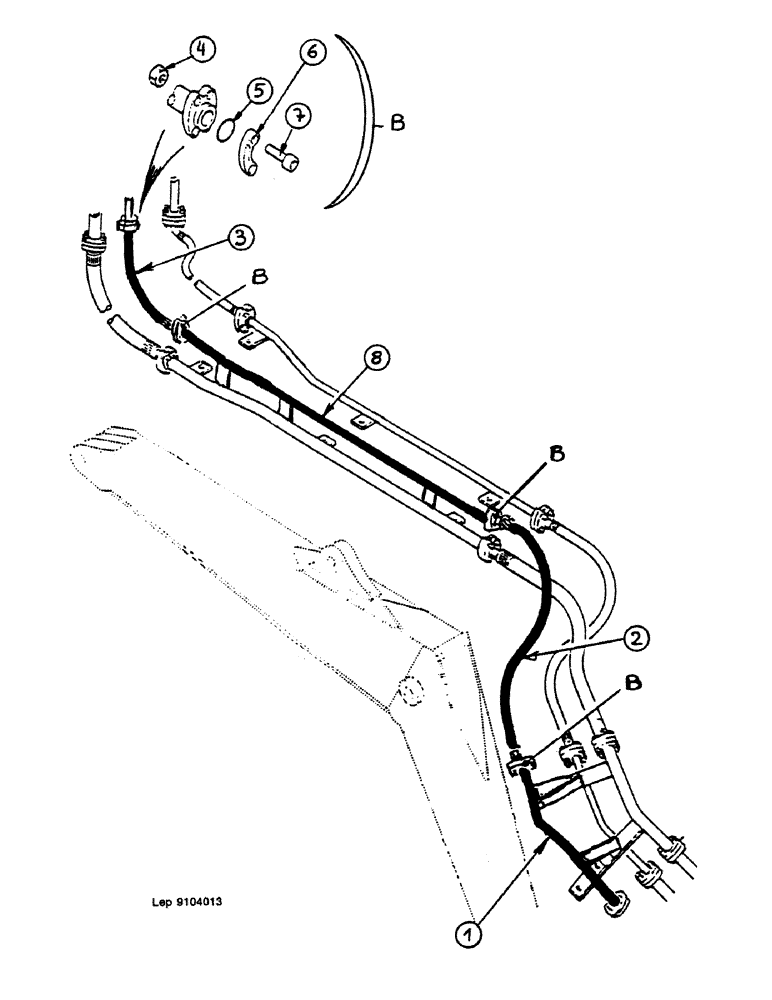

Запчасти Case 688 (22) - HYDRAULIC CIRCUIT ON BOOM (4.80M-5.40M)

1

V4050181

PIPE

SPARE PART line, on boom 4.80m - 5.40m

1шт.

2

Z5931952

HOSE,18.6mm ID x 1000mm L

1000mm, on boom 4.80m - 5.40m

1шт.

3

C5931978

HOSE,19mm ID x 1250mm L

1250mm, on boom 4.80m

1шт.

3

W5431999

HOSE

1600mm, on boom 5.40m

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

On boom 4.80m - 5.40m

16шт.

5

L1130483

O-RING

on boom 4.80m - 5.40m

4шт.

6

C4024266

CLAMP

half, on boom 4.80m - 5.40m

8шт.

7

73177617

SCREW,Hex Soc Hd, M10 x 50, 8.8

On boom 4.80m

16шт.

7

H732994

SCREW,Hex Soc Hd, M10 x 50, 10.9

on boom 5.40m

16шт.

8

W4050182

PIPE ASSY.

SPARE PART on boom 4.80m

1шт.

8

NSS

NOT SOLD SEPARAT

PIPE, on boom 5.40m

1шт.
