/ / / / / / / (2-14) - HYDRAULIC MOTOR, (-XXXXX)

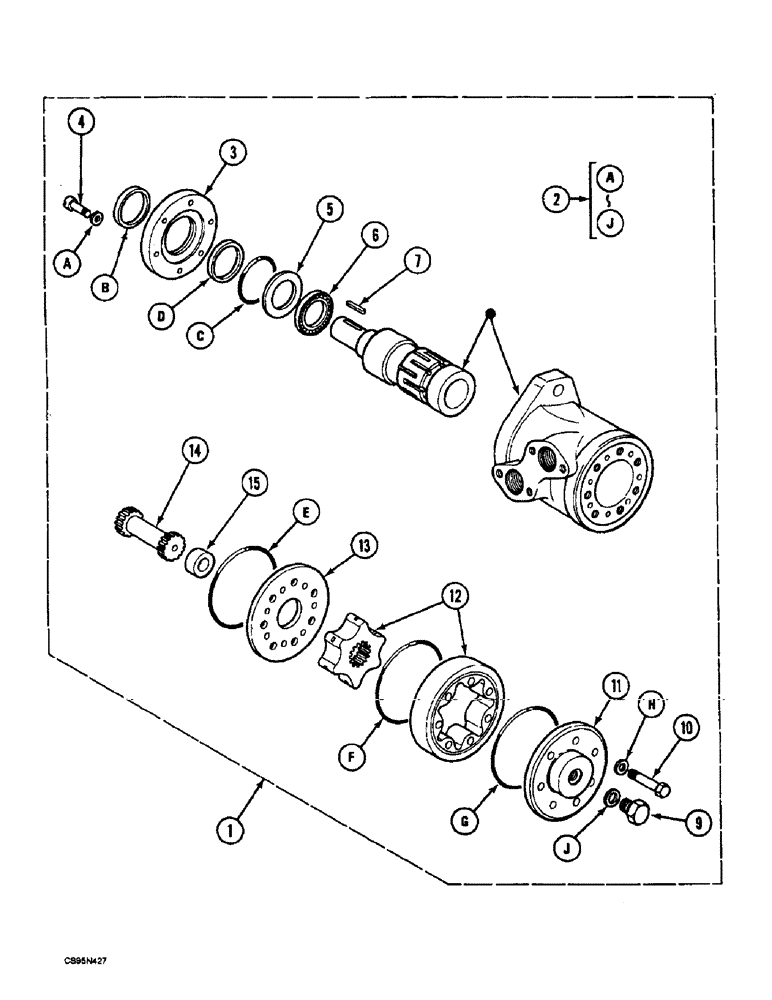

Запчасти Case 688 (2-14) - HYDRAULIC MOTOR, (-XXXXX)
c
4
5
14
g
10
f
3
13
h
1
11
d
b
6
j
7
12
e
a
j
a
9
2
15
1
C4743729
HYDRAULIC MOTOR
1шт.
2
K149693
SEAL KIT
parts
1шт.
3
W650207
LARGE PLATE
PLATE, LARGE cover
1шт.
4
B32569
SCREW
M6 x 20
6шт.
5
N2745476
WASHER
1шт.
6
P739946
BEARING
BALL
1шт.
7
G236147
BUCKET TOOTH KEY
1шт.
9
F1337455
PLUG
1шт.
10
F732624
SCREW
M8 x 70
7шт.
11
P4630120
COVER
SHEET
1шт.
12
G4839390
PINION
1шт.
13
X650208
LARGE PLATE
PLATE, LARGE
1шт.
14
Q6427847
SHAFT
1шт.
15
R2528773
SPACER
1шт.
