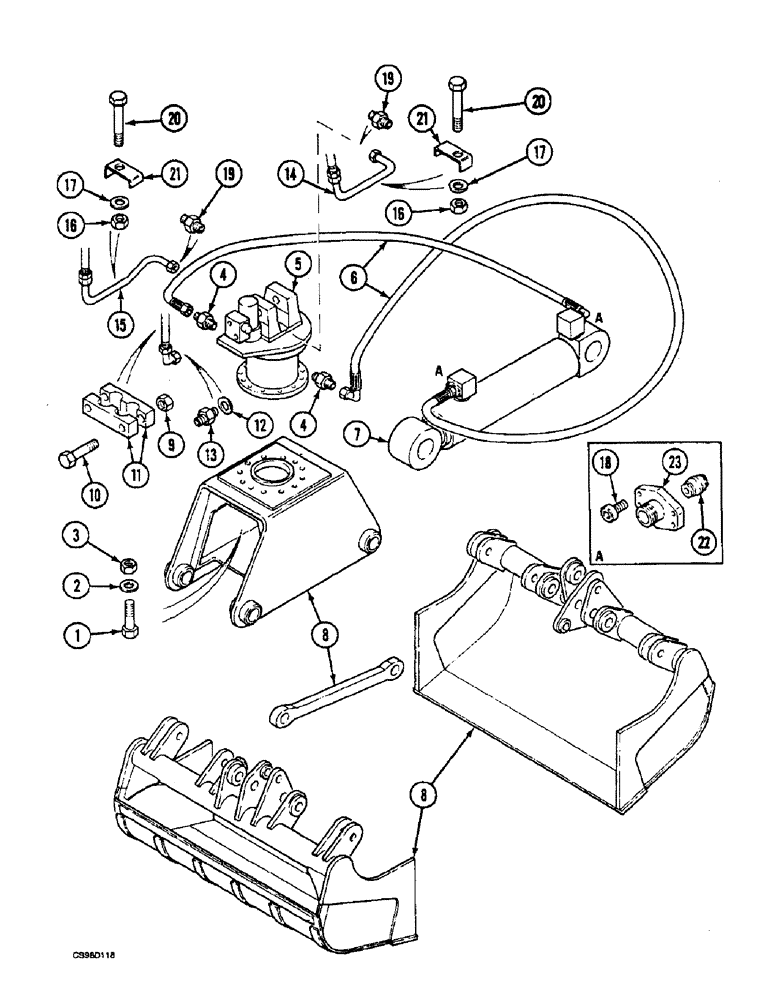

Запчасти Case 688 (2-02) - HYDRAULIC CIRCUIT

1

828-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

10шт.

2

U4528718

SHIM

21 x 40 x 35

10шт.

3

S134106

NUT

M20

10шт.

4

G3037501

UNION

2шт.

V5746063

GASKET

23.9 x 29.2 x 1.5

1шт.

5

REF

INSTRUCTION

PIVOT swivel, See Figure : 2-12

1шт.

6

V3731930

HOSE

1250 mm (49-1/4 in)

2шт.

7

REF

INSTRUCTION

CYLINDER ASSY, See Figure : 2-4 Clamshell : 250L

1шт.

7

REF

INSTRUCTION

CYLINDER ASSY, See Figure : 2-6 - 2-10 Clamshell : 1000L - 2500L

1шт.

8

REF

INSTRUCTION

FRAME, See Figure : 2-20 - 2-36

1шт.

9

G34598

SAFETY NUT

M10

2шт.

10

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

11

N4820329

SHIN

BRACKET clamp

1шт.

12

Z45217

SEAL,24mm ID x 26mm OD x 1mm Thk

SEAL WASHER 21.2 x 25.9 x 1.5

2шт.

13

T3037581

UNION

2шт.

14

Z8047653

PIPE

1шт.

15

A8047654

PIPE

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.

17

E34711

WASHER

W 10

2шт.

18

L32923

SCREW

M8 x 30

4шт.

19

K3037504

UNION

2шт.

S945293

WASHER, SEALING

SEAL WASHER 18.5 x 23.9 x 1.5

1шт.

20

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

21

D26085

PIPE CLAMP

BRACKET

2шт.

22

T1528827

JUNCTION

FITTING

2шт.

23

S1828953

JUNCTION

UNION

2шт.
