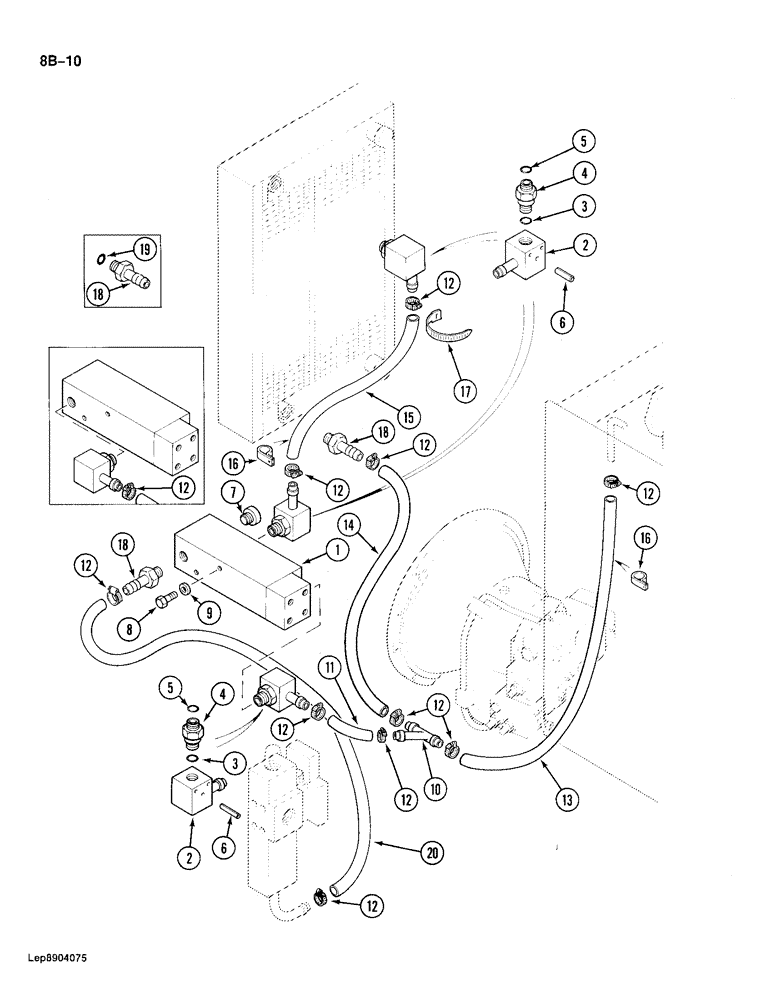

Запчасти Case 688 (8B-10) - HYDRAULIC PUMP LINES, THERMOSTAT-CONTROLLED VALVE OPTION (08) - HYDRAULICS

1

REF

INSTRUCTION

THERMOSTAT-CONTROLLED VALVE - return, parts list Figure 8B-16

1шт.

P5137722

FITTING

ADAPTER ASSEMBLY - return hoses, at valve and reservoir, Includes: Ref. 2 - 6

4шт.

2

P5137721

BODY

- adapter

1шт.

3

P430411

O-RING

- adapter

1шт.

4

P4037541

LARGE PIN

ADAPTER - straight

1шт.

5

P5746063

SEAL

- adapter

1шт.

6

P35725

SPLIT PIN/SAFETY PIN

ROLL PIN - adapter body

2шт.

7

P2537413

PLUG

- at thermostat controlled valve

1шт.

P1145268

SEAL

- plug

1шт.

8

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

9

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

10

P5137757

TRANSMISSION SLEEVE

MANIFOLD - cooler return

1шт.

11

REF

INSTRUCTION

HOSE - adapter to manifold, 9-15/16" long, cut from P1103635

1шт.

12

P36998

COLLAR CLAMP

CLAMP - hose, small

10шт.

13

REF

INSTRUCTION

HOSE - manifold to reservoir, 49-1/4" long, cut from P1103635

1шт.

14

REF

INSTRUCTION

HOSE - cooler to manifold, 24-13/16" long, cut from P1103635

1шт.

15

REF

INSTRUCTION

HOSE - cooler to coupling, 31-1/2" long, cut from P1103635

1шт.

16

P51959

CLAMP

- hose, large

1шт.

17

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

2шт.

18

P3237582

FITTING

ADAPTER - straight, barb hose type, Includes: Ref. 19, Serial Range: 11601-11696

2шт.

18

P4837545

FITTING

ADAPTER - straight, barb hose type (Replaces P3237582, P5746063), Start Serial: 11697

2шт.

19

P5746063

SEAL

- adapter

1шт.

20

REF

INSTRUCTION

HOSE - selector to valve, 19-3/4" long, cut from P110365

1шт.
