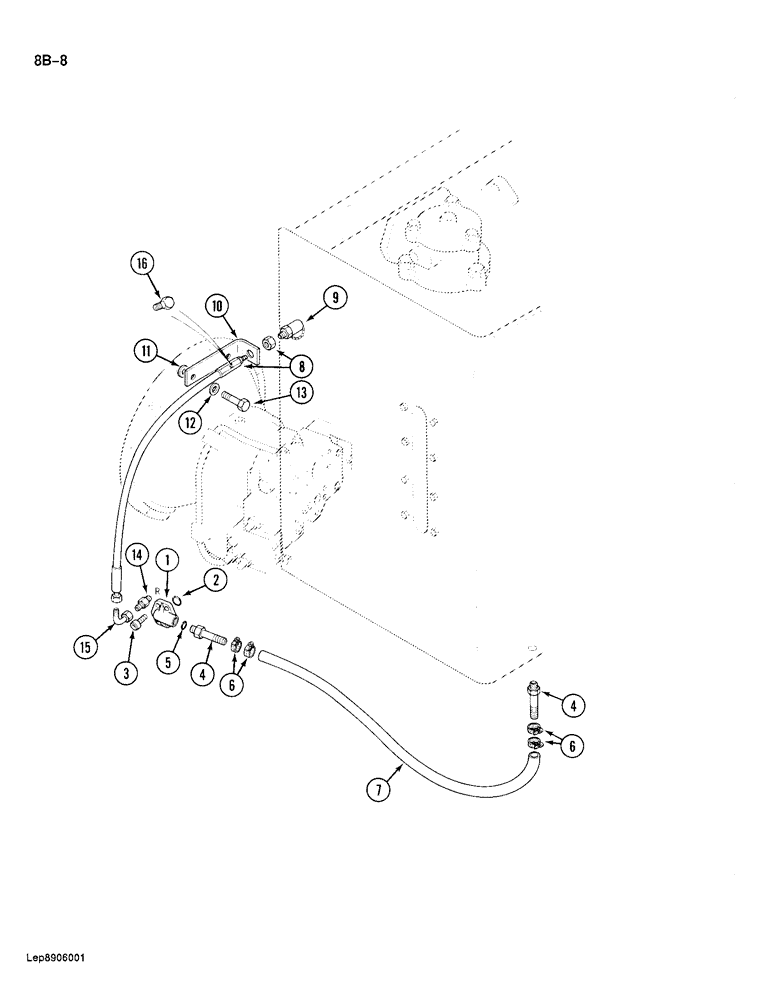

Запчасти Case 688 (8B-08) - HYDRAULIC PUMP LINES, LOW PRESSURE PUMP SUCTION AND PRESSURE CHECK LINES (08) - HYDRAULICS

1

P3837794

SHIN

FLANGE - suction, low pressure pump

1шт.

2

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- flange

1шт.

3

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

4шт.

4

P4837546

FITTING

ADAPTER - straight, barb hose type (Replaces P3237586, P5746063)

1шт.

P5746063

SEAL

- adapter

1шт.

6

P3836919

COLLAR CLAMP

CLAMP - hose (Replaces P36903)

4шт.

7

REF

INSTRUCTION

HOSE - reservoir to low pressure pump, 24-13/16" long, cut from P1103634

1шт.

8

P7331966

HOSE

- 23-15/16" long, pump to disconnect, Start Serial: XXXXX

1шт.

When using the P7331966 in place of the P6631952 for the 688CK, Must order P4837507 Union, P1737021 Angle and P2537447 Plug

1шт.

9

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

10

P5225664

SUPPORT

BRACKET - hose support, Serial Range: 11601-XXXXX

1шт.

10

P5625604

SUPPORT

BRACKET - hose suppport, Start Serial: XXXXX

1шт.

11

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

12

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

13

P933835

SCREW

BOLT - hex, 10 mm x 70 mm, full thread

2шт.

14

P4037529

UNION

ADAPTER - straight, Serial Range: 11601-XXXXX

1шт.

P7046042

SEAL

- adapter

1шт.

14

P4837507

UNION

ADAPTER - straight, Start Serial: XXXXX

1шт.

P7046042

SEAL

- adapter

1шт.

15

P1737020

ANGLE

ELBOW - 90 degree, Serial Range: 11601-XXXXX

1шт.

15

P1737021

ANGLE

ELBOW - 90 degree, Start Serial: XXXXX

1шт.

16

P2537447

PLUG

- hose, Start Serial: XXXXX

1шт.
