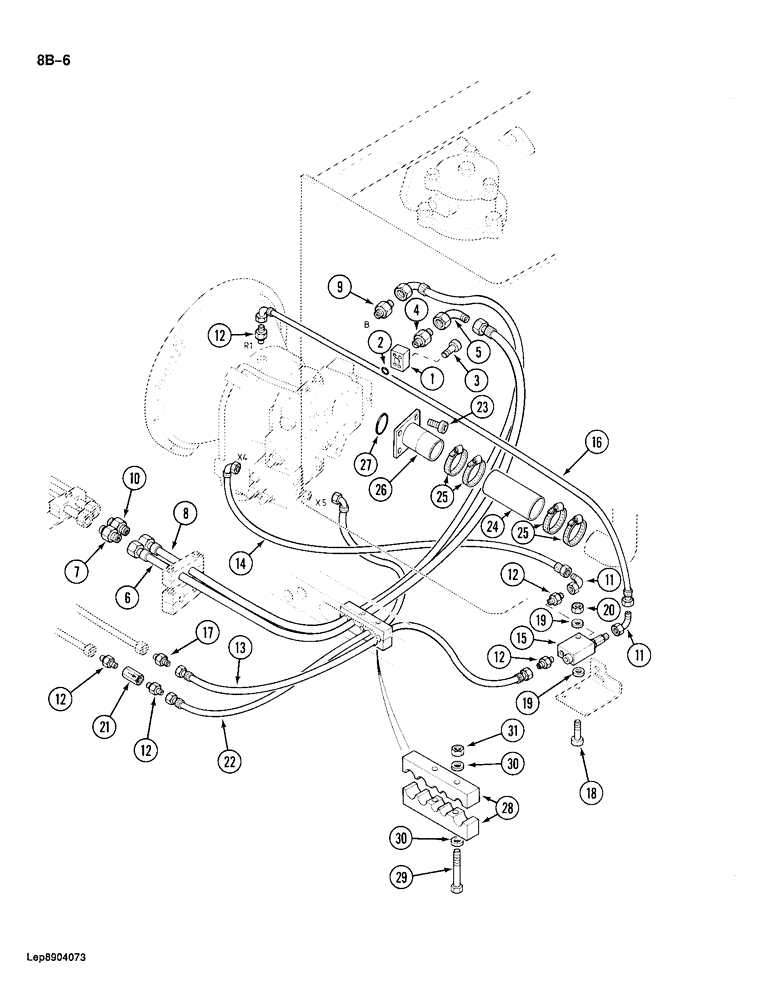

Запчасти Case 688 (8B-06) - HYDRAULIC PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE, ANTI SURGE VALVE (08) - HYDRAULICS

1

P5137766

SHIN

FLANGE - low pressure pump

1шт.

2

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- flange

1шт.

3

P32912

SCREW

BOLT - hex socket, 6 mm x 25 mm

4шт.

4

P4037597

UNION

ADAPTER - straight

1шт.

P5746063

SEAL

- adapter

1шт.

5

P1737021

ANGLE

ELBOW - 90 degree

1шт.

6

P7631935

HOSE

- 55-1/8" long, pump to solenoid valve (Replaces P6531922)

1шт.

7

P3237537

UNION

ADAPTER - straight

1шт.

8

P5431968

HOSE

- 63 inch long, pump to swing control valve

1шт.

9

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

10

P3237537

UNION

ADAPTER - straight

1шт.

11

P1737018

ANGLE

ELBOW - 90 degree

2шт.

12

P3237530

UNION

ADAPTER - straight

5шт.

P7046042

SEAL

- adapter

1шт.

13

P6531934

HOSE

- 31-1/2" long, leak return

1шт.

14

P5931966

HOSE

- 31-1/2" long, leak return, pump to antisurge valve

1шт.

15

REF

INSTRUCTION

VALVE - leak return, see Figure 8B-14

1шт.

16

P5431965

HOSE

- 31-1/2" long, leak return, pump at upper, Serial Range: point-valve

1шт.

17

P3237534

UNION

ADAPTER - straight

1шт.

18

P132970

DEUTZ PART

BOLT - hex socket, 8 mm x 60 mm

2шт.

19

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

20

P134596

SAFETY NUT

NUT - hex head, self locking, 8 mm

2шт.

21

REF

INSTRUCTION

FILTER ASSEMBLY - leak return, see Figure 8B-4

1шт.

22

P5431940

HOSE

- 49-3/16" long, leak return, hydraulic, Serial Range: swivel-pump

1шт.

23

P32941

SCREW

BOLT - hex, 12 mm x 25 mm (Replaces P33873)

4шт.

24

P131987

LARGE HOSE

HOSE - suction, reservoir to tube at pump

1шт.

25

P136902

COLLAR CLAMP

CLAMP - suction hose

4шт.

26

P4050162

MANIFOLD

TUBE AND PLATE - suction, at pump (Replaces P3950192)

1шт.

27

P930454

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- suction tube

1шт.

28

P5120339

SHIN

CLAMP - hose, at frame (Replaces P4820362)

2шт.

29

P33832

SCREW

BOLT - hex, 10 mm x 110 mm

2шт.

30

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

31

P34598

SAFETY NUT

NUT - hex, self-locking 10 mm

2шт.
