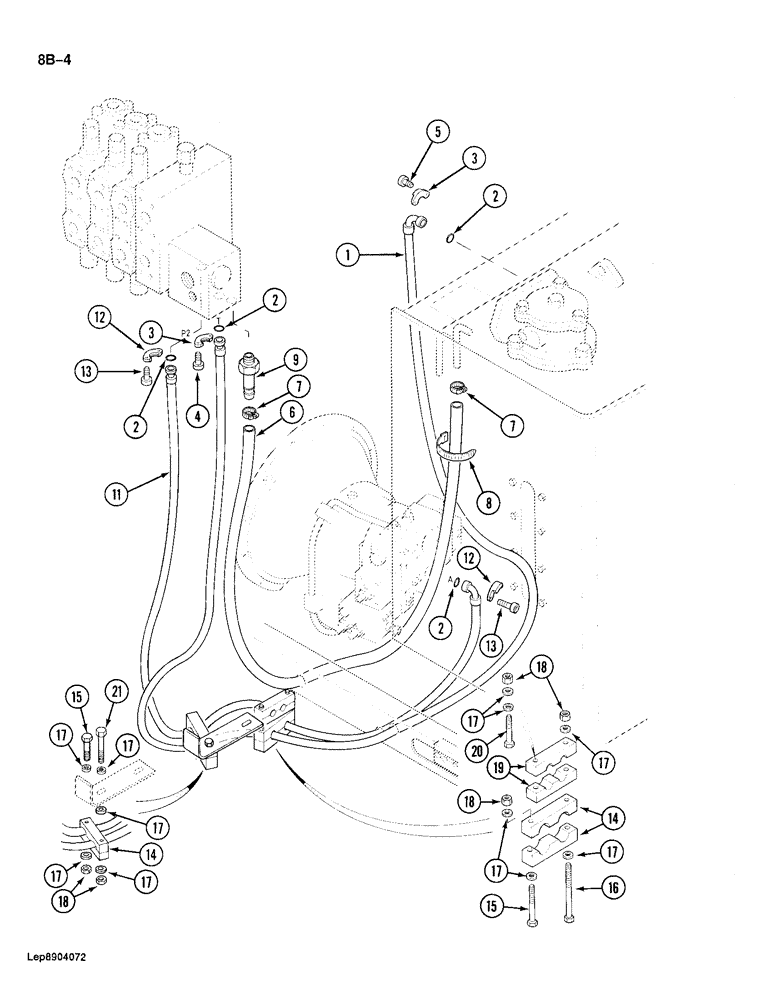

Запчасти Case 688 (8B-04) - HYDRAULIC PUMP LINES, PUMP TO ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

P7331928

HOSE

- 102-3/8" long, return, attachment control, Serial Range: valve-reservoir

1шт.

2

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

4шт.

3

P4024272

BRACKET

SPLIT flange - hose

4шт.

4

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

8шт.

5

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

6

REF

INSTRUCTION

HOSE - leak return, 78-3/4" long, cut from P1103635

1шт.

7

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

8

P51946

CLAMP

TIE STRAP - hoses, 10-1/8" long

1шт.

9

P4837545

FITTING

ADAPTER - straight, barb hose type (Replaces P3237582)

1шт.

P5746063

SEAL

- adapter

1шт.

11

P5931916

HOSE

- 70-7/8" long, pressure, pump to attachment control valve

1шт.

12

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

13

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

8шт.

14

P5120331

SHIN

CLAMP - hoses to frame (Replaces P4620335)

2шт.

15

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

1шт.

16

P1133858

SCREW

BOLT - hex, 10 mm x 140 mm

2шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

18

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

3шт.

19

P5120340

SHIN

CLAMP - hoses, small (Replaces P4820370)

2шт.

20

P933835

SCREW

BOLT - hex, 10 mm x 70 mm

1шт.

21

P33832

SCREW

BOLT - hex, 10 mm x 110 mm

1шт.
