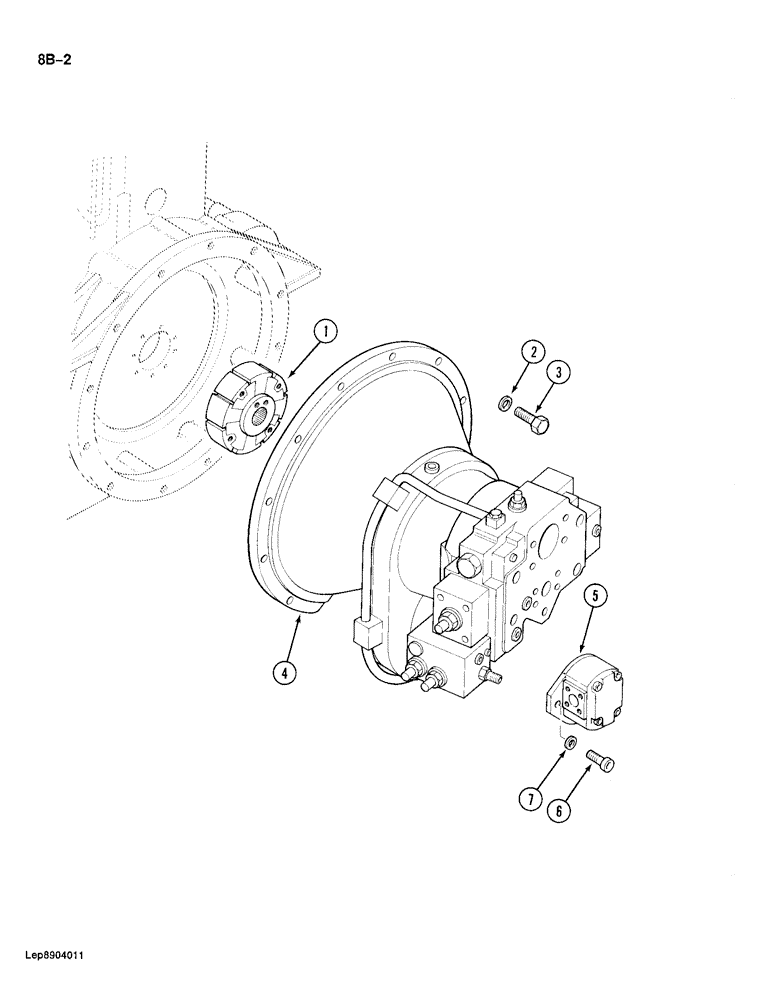

Запчасти Case 688 (8B-02) - HIGH PRESSURE HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

P8646259

COUPLING

- motor to main hydraulic pump

1шт.

P32962

SCREW

BOLT - coupling, hex socket, 16 mm x 50 mm

4шт.

2

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

3

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

12шт.

4

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, see Figures, Serial Range: 8B-20-8B-32

1шт.

5

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - low pressure, see Figure 8B-18

1шт.

6

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm, pump mounting to high pressure pump body

2шт.

7

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

P5120374

SHIN

Clamp

1шт.

P/N P5120374 is illustrated in Fig. 8b-20 Ref. 25.

1шт.

P4050160

PIPE

1шт.

P4835512

ADAPTER

1шт.

P34911

BOLT

1шт.
