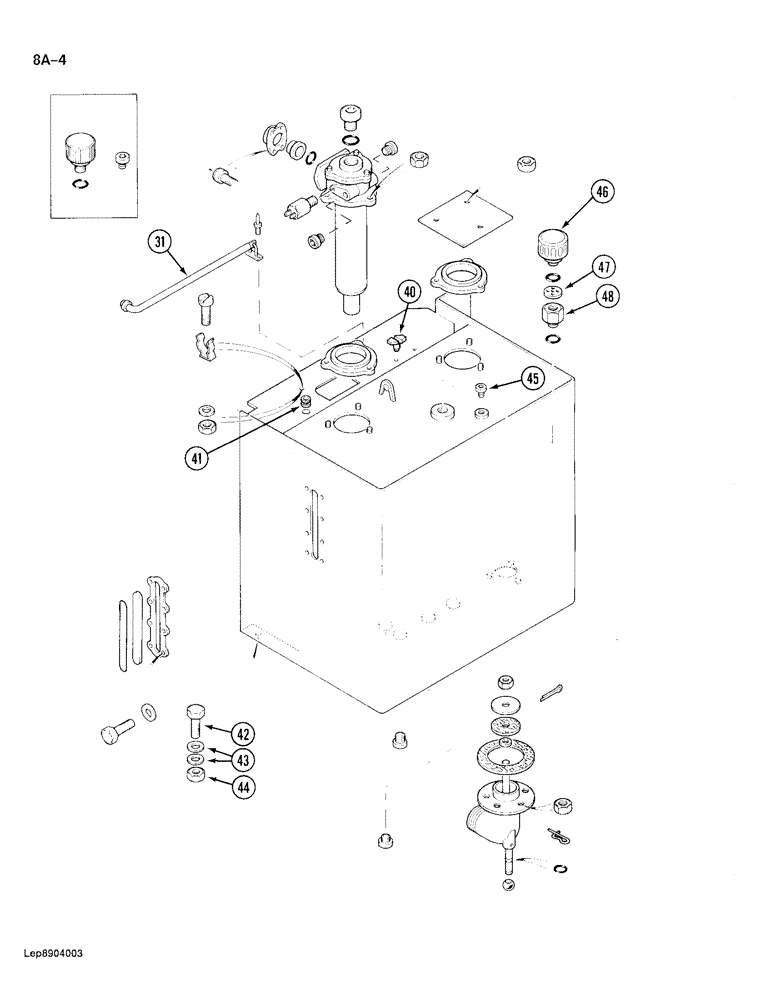

Запчасти Case 688 (8A-4) - HYDRAULIC RESERVOIR, CONTD (08) - HYDRAULICS

40

P3036926

BASE

RETAINER - harness strap

7шт.

41

P41477

GROMMET

- harness

1шт.

42

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

4шт.

43

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

44

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

4шт.

45

P3337446

PLUG

- reservoir, at the top, (P.I.N. from XXXXX and after)

1шт.

P1145268

SEAL

- plug

1шт.

46

P2950519

BREATHER

- hydraulic reservoir, (P.I.N. from XXXXX and after)

1шт.

47

P3545029

WASHER

- special, at adapter, (P.I.N. from XXXXX and after)

1шт.

48

P4837510

FITTING

ADAPTER - breather to reservoir, (P.I.N. from XXXXX and after)

1шт.
