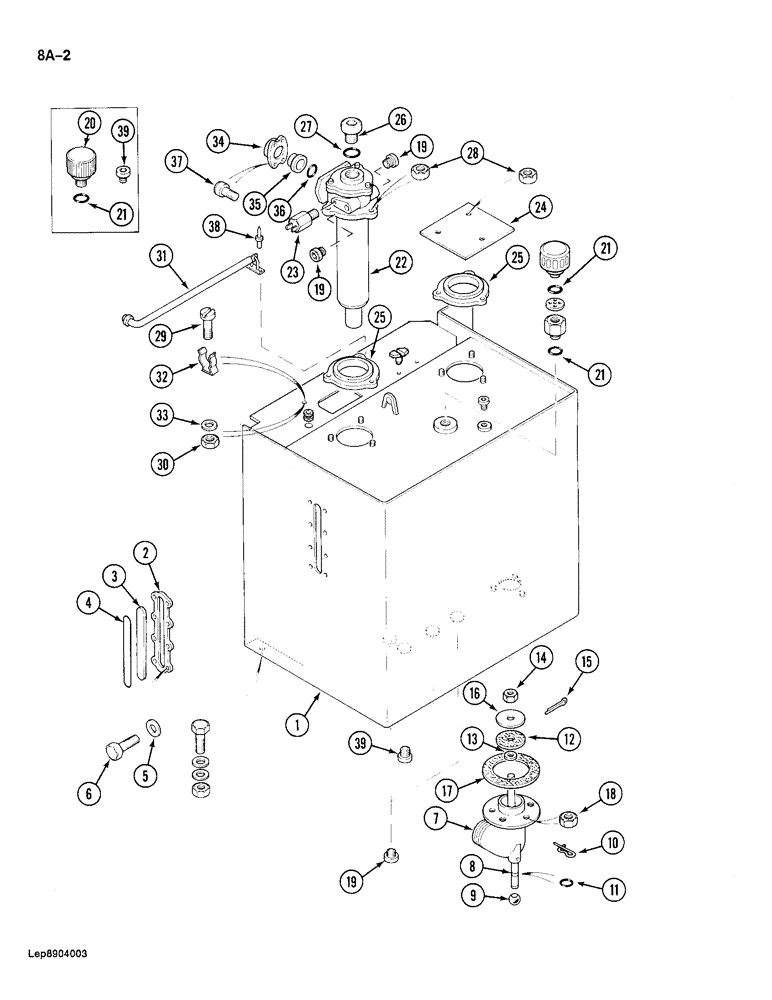

Запчасти Case 688 (8A-2) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

P1540280

RESERVOIR, HYDRAULIC

RESERVOIR - hydraulic oil (Replaces P1540242)

1шт.

Ref #1 - Oil Filter Studs were replaced by tappered rivets (6) P35478 Rivets, (2) P9646037 Seal (6) P35002 Washers & (6) P32923 Screw

1шт.

2

P423428

BODY

RETAINER - sight gauge

1шт.

3

P22485

SIGHTGLASS

LENS - sight gauge

1шт.

4

P130487

O-RING

- lens

1шт.

5

P28425

COMPOSITE SEAL

WASHER - special, sealing

8шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

P837864

VANEUM GAUGE

SHUTOFF VALVE ASSEMBLY - hydraulic, Includes: Ref. 7 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

8

P2127954

STEM

ROD - shutoff control

1шт.

9

P152059

BALL KNOB

KNOB - control rod

1шт.

10

P36016

SPLIT PIN/SAFETY PIN

PIN - retainer

1шт.

11

P1930415

O-RING

- control rod

1шт.

12

P7546099

SEAL

GASKET - shutoff plate

1шт.

13

P2828548

WASHER

- special, shutoff rod

1шт.

14

P2828550

WASHER

PLATE - shutoff

1шт.

15

P34303

NUT

- hex, slotted

1шт.

16

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

1шт.

17

P7546084

SEAL

GASKET -, Serial Range: valve-reservoir

1шт.

18

P134596

SAFETY NUT

NUT - hex, self-locking, M8

3шт.

19

P2537429

PLUG

- reservoir drain and filter

5шт.

P5746063

SEAL

- plug, not shown

1шт.

20

P1950543

BREATHER

- hydraulic reservoir, Serial Range: 11601-XXXXX

1шт.

21

P245217

WASHER, SEALING

SEAL -, Serial Range: breather-reservoir

1шт.

Ref #21 - Not used when P2950519 (Ref #46) is replaced by P2950545

1шт.

22

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic return oil, see Figure 8A-6

1шт.

23

P1241851

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

24

P2023241

COVER

- hydraulic reservoir

1шт.

25

P8846035

SEAL

- cover

1шт.

26

P1337409

PLUG

- filler, Includes: Ref. 27

1шт.

27

P130469

O-RING,40.95MM ID x 2.62MM Width

- plug

1шт.

28

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

29

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted, 4 mm x 16 mm

1шт.

30

P34107

NUT - hex, 4 mm

1шт.

31

P736693

STAND

ROD - support, engine access cover

1шт.

32

P1736995

FASTENER

CLIP - support rod

1шт.

33

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

34

P4024263

SHIN

SPLIT FLANGE - tube plug

1шт.

35

P5327844

BLANK-OFF PLUG

PLUG - tube

1шт.

36

P1230493

O-RING

- tube plug

1шт.

37

P1332992

SCREW

BOLT - hex, 12 mm x 25 mm

4шт.

38

P35418

RIVET

POP RIVET - 8 mm x 17 mm, Serial Range: rod-panel

2шт.

39

P2537413

PLUG

- reservoir drain

3-4шт.

P1145268

SEAL

- plug, not shown

1шт.
