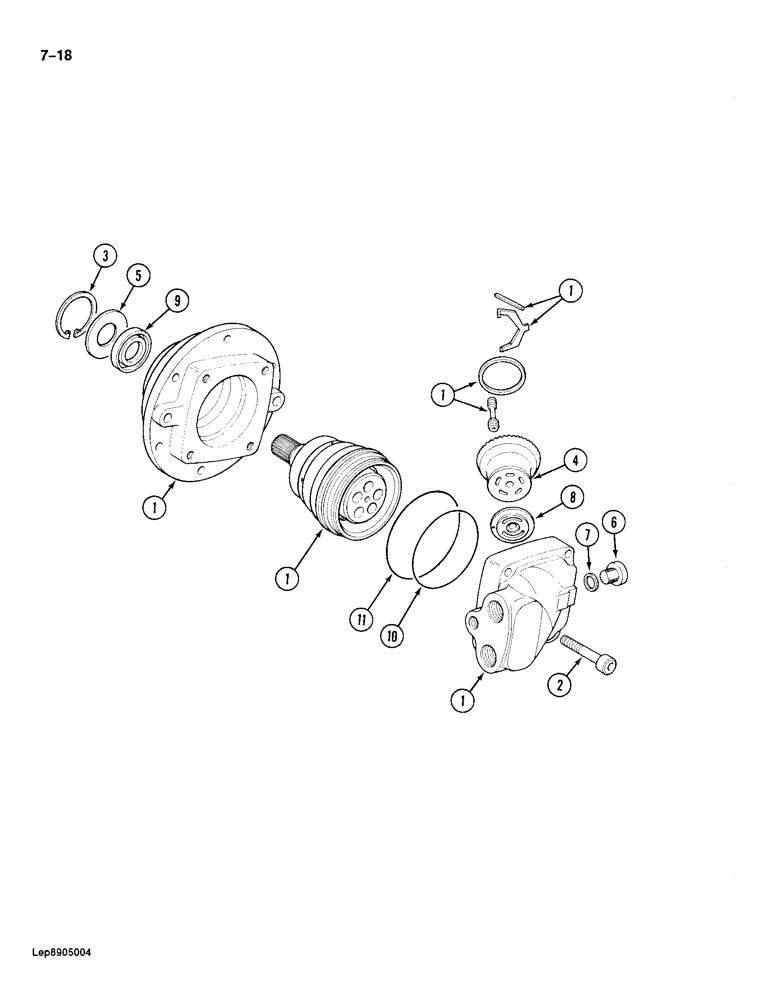

Запчасти Case 688 (7-18) - TRACK DRIVE HYDRAULIC MOTOR (07) - BRAKES

P2343765

MOTOR, HYDRAULIC

HUYDRAULIC MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - no component part available, service only as a remanufactured unit, order P2343765

1шт.

2

P1332953

SCREW

BOLT - hex socket, 10 mm x 45 mm, grade 10.9

4шт.

3

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

4

P1030005

LOCK, CYLINDER

BLOCK - cylinder

1шт.

5

P1945345

WASHER

- seal retaining

1шт.

6

P3037428

PLUG

- rear housing

1шт.

7

P1245274

WASHER

SEAL - plug

1шт.

8

P6546296

ELEC SUPPORT PLATE

PLATE - valve

1шт.

P3749695

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 9 - 11

1шт.

9

P7146035

SEAL

- shaft, front housing, 62 mm O.D. x 40 mm I.D. x 6 mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.
