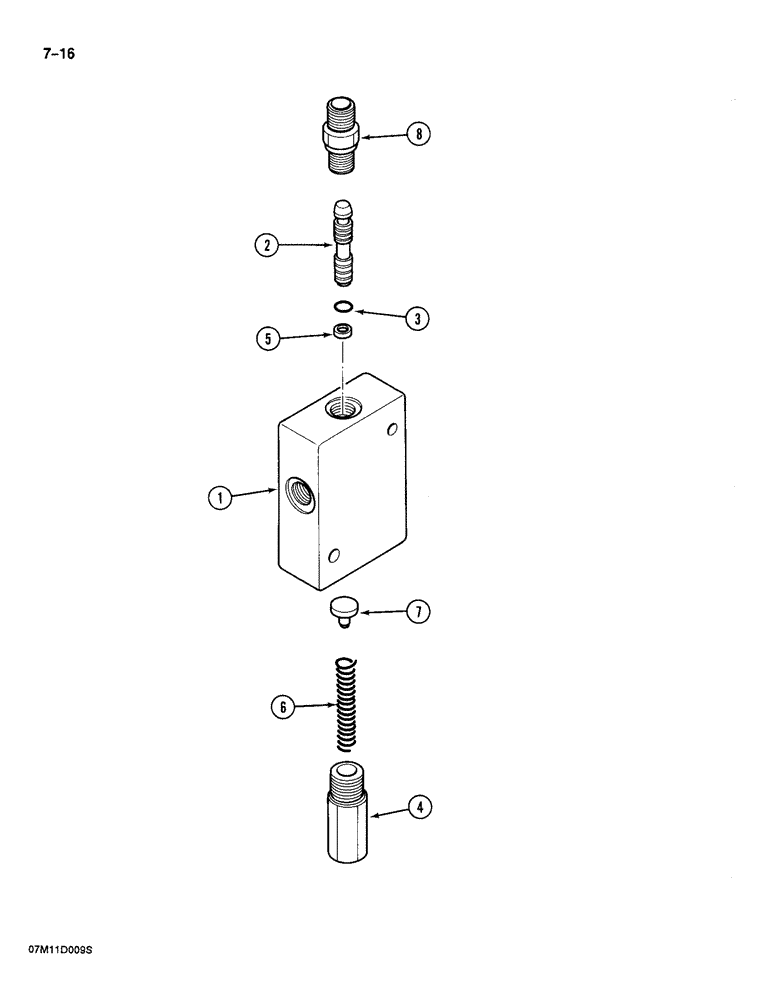

Запчасти Case 688 (7-16) - TRAVEL SPEED LIMITED VALVE (07) - BRAKES

P4743323

BLOCK ASSY.

VALVE ASSEMBLY - travel speed limiter, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

2

P6427817

SPOOL

- valve

1шт.

3

P230411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- spool

1шт.

4

P1030032

CAP

- spring

1шт.

5

P1245265

BACK-UP RING

BACKUP RING - seal

1шт.

6

P1538196

COMPRESSION SPRING

SPRING - spool

1шт.

7

P6027871

TAPPET

GUIDE - spring

1шт.

8

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.
