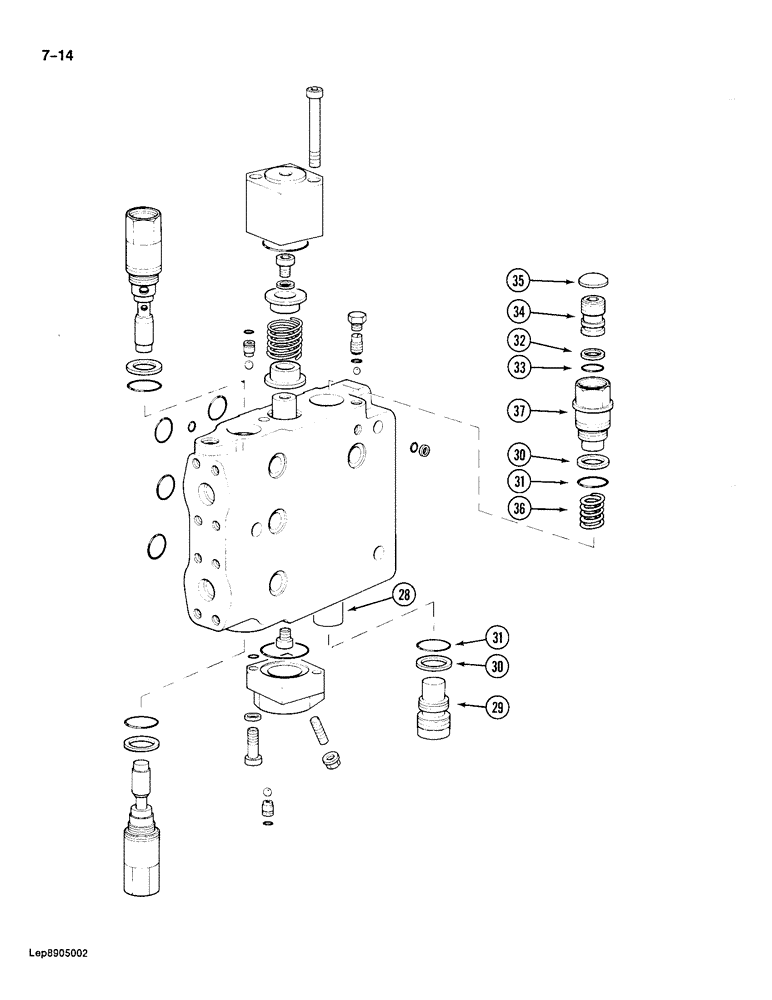

Запчасти Case 688 (7-14) - DRIVE CONTROL VALVE, TRACK DRIVE SECTION (07) - BRAKES

P3343681

DISTRIBUTOR

TRACK DRIVE SECTION ASSEMBLY - center, left-hand drive motor, Includes: Ref. 28 - 37 on this figure & Ref. 1 - 27 on Figure 7-12

1шт.

P3343682

DISTRIBUTOR

TRACK DRIVE SECTION ASSEMBLY - inside, right-hand drive motor, Includes: Ref. 28 - 37 on this figure & Ref. 1 - 27 on Figure 7-12

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

29

P3037406

PLUG

- valve body

1шт.

30

P1245232

RING

BACKUP RING - seal

1шт.

31

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

32

P1245231

BACK-UP RING

BACKUP RING - seal

1шт.

33

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- adjusting screw

1шт.

34

P3143669

SPARE PART SET

VALVE ASSEMBLY - drive control valve

1шт.

35

P2340461

BLANK-OFF PLUG

COVER - flow control valve

1шт.

36

P1538155

SPRING

- flow control valve

1шт.

37

P2340460

CAP

BODY - flow control valve

31шт.
