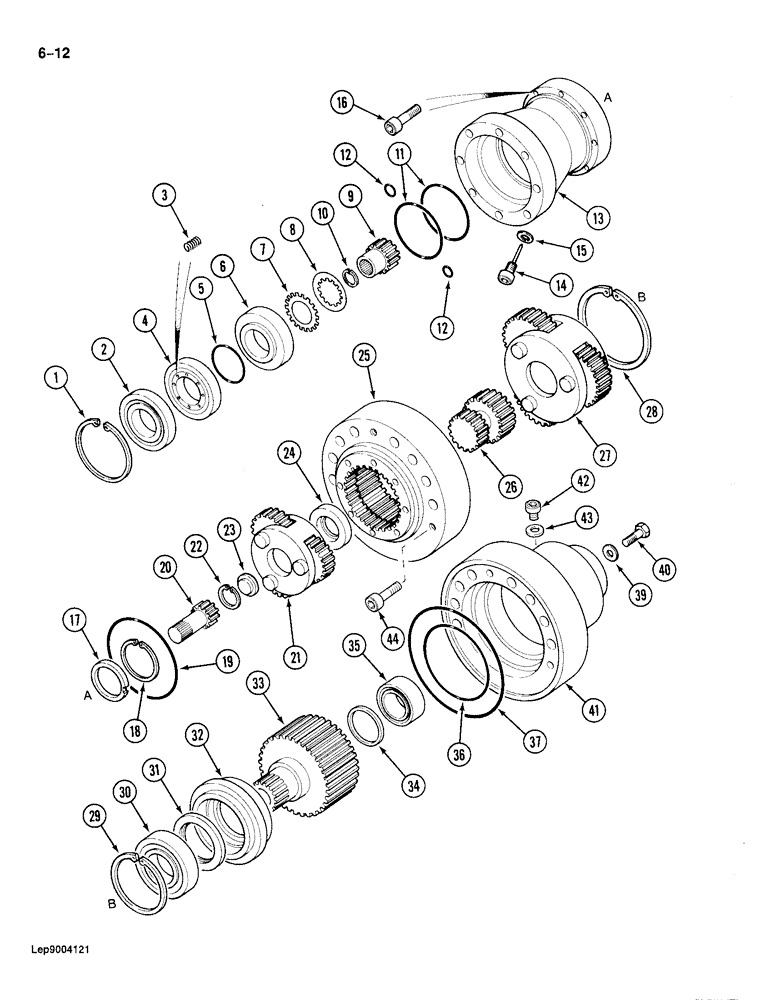

Запчасти Case 688 (6-12) - SWING TRANSMISSION, P.I.N. FROM 11653 AND AFTER (06) - POWER TRAIN

P2648585

REDUCER

SWING TRANSMISSION ASSEMBLY - excavator

1шт.

1

P36258

RING, SNAP

SNAP RING - brake cap

1шт.

2

P1929075

STOP

CAP - brake

1шт.

3

P38287

SPRING

- brake piston

8шт.

4

P2728952

PISTON

- brake

1шт.

5

P30412

O-RING

- piston

1шт.

6

P5428731

SPACER

RING - seal

1шт.

7

P8046025

DISC

- brake, friction

7шт.

8

P1945380

DISC

- brake, metal

6шт.

9

P3739390

FUNNEL

COUPLING - drive motor

1шт.

10

P936331

RING, SNAP

SNAP RING - coupling

1шт.

11

P230412

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- piston, large

2шт.

12

P230419

O-RING

- brake housing

1шт.

13

P5140307

HOUSING

- brake

1шт.

14

P2537488

PLUG

AND DIPSTICK - brake housing

1шт.

15

P545208

WASHER, SEALING

SEAL - plug and dipstick

1шт.

16

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

17

P1846351

SPACER

- housing

1шт.

18

P36249

RING, SNAP

SNAP RING - spacer

1шт.

19

P1830404

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

- brake housing

1шт.

20

P4339339

GEAR

PINION SHAFT - planetary

1шт.

21

P4339381

PINION CARRIER

FIRST STAGE CARRIER - planetary

1шт.

Ref. item #21 P4339381 The housing diameter is approx. 5-1/8" o.d. by bb 5/15/96

1шт.

22

P936344

RING

SNAP RING - thrust washer

1шт.

23

P6027837

STOP

THRUST WASHER

1шт.

24

P2728893

SPACER

- carrier

1шт.

25

P4839356

CROWN WHEEL

HOUSING - carrier

1шт.

26

P4839327

GEAR

SUN GEAR - planetary

1шт.

27

P4839355

PINION CARRIER

SECOND STAGE CARRIER - planetary

1шт.

Ref. item #27 P4839355 The housing diameter is approx. 7-1/4" o.d. The outside diameter of the gear teeth is 200mm or 7.874".

1шт.

P2948504

HOUSING

SWING GEAR AND HOUSING - assembly, transmission

1шт.

28

P536249

RING, SNAP

SNAP RING - bearing housing

1шт.

29

P36258

RING, SNAP

SNAP RING - bearing

1шт.

30

P1139844

BEARING

BALL BEARING - swing gear shaft, upper

1шт.

31

P651270

SEAL

- upper bearing

1шт.

32

P5240369

COVER

HOUSING - bearing

1шт.

33

P3739391

PINION

SWING GEAR AND SHAFT - transmission

1шт.

34

P8046028

SEAL

- lower bearing

1шт.

35

P1139845

BEARING

BALL BEARING - swing gear shaft, lower

1шт.

36

P30485

O-RING

- housing, small

1шт.

37

P2130491

O-RING,0.103" Thk x 8" ID, -171, Cl 5, 75 Duro

- housing, large

1шт.

39

P1245224

LINING

SEAL - bolt

1шт.

40

P433813

SCREW

BOLT - hex head, 8 mm x 10 mm

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - swing gear

1шт.

42

P1337431

PLUG

- gear housing

2шт.

43

P146093

WASHER, SEALING

SEAL - plug

2шт.

44

P432938

SCREW

BOLT - hex socket, 10 mm x 70 mm

3шт.
