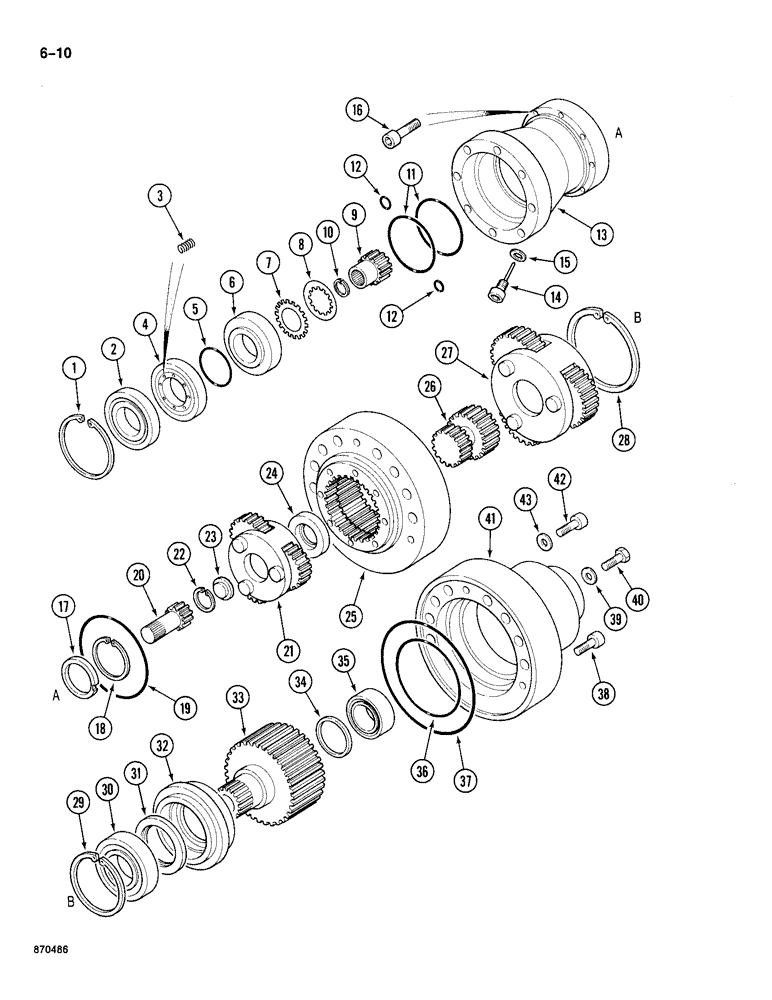

Запчасти Case 688 (6-10) - SWING TRANSMISSION, P.I.N. FROM 11601 TO 11652 (06) - POWER TRAIN

P2648569

REDUCER

SWING TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 44

1шт.

1

P36258

RING, SNAP

SNAP RING - brake cap

1шт.

2

P1929054

STOP

CAP - brake

1шт.

3

P38287

SPRING

- brake piston

8шт.

4

P2728952

PISTON

- brake

1шт.

5

P30412

O-RING

- piston

1шт.

6

P5428731

SPACER

RING - seal

1шт.

7

P8046025

DISC

- brake, friction

7шт.

8

P1245225

DISC

- brake, metal

6шт.

9

P3739390

FUNNEL

COUPLING - drive motor

1шт.

10

P936331

RING, SNAP

SNAP RING - coupling

1шт.

11

P230412

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

- piston, large

2шт.

12

P230419

O-RING

- brake housing

2шт.

13

P5140307

HOUSING

- brake

1шт.

14

P2537488

PLUG

AND DIPSTICK - brake housing

1шт.

15

P545208

WASHER, SEALING

SEAL - plug and dipstick

1шт.

16

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

17

P1846351

SPACER

- housing

1шт.

18

P36249

RING, SNAP

SNAP RING - spacer

1шт.

19

P1830404

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

- brake housing

1шт.

20

P4339339

GEAR

PINION SHAFT - planetary

1шт.

21

P4339381

PINION CARRIER

FIRST STAGE CARRIER - planetary, Includes: Ref. 22 & 23

1шт.

22

P936344

RING

SNAP RING - thrust washer

1шт.

23

P6027837

STOP

THRUST WASHER

1шт.

24

P2728893

SPACER

- carrier

1шт.

25

P4339340

SLEWING RING

HOUSING - carrier (Order (1) Swing Gear & housing P2948504, (1) housing P4839356 & (3) bolt P432938) (See T.I.N. Nbr 3152)

1шт.

26

P4839327

GEAR

SUN GEAR - planetary

1шт.

27

P4839335

PINION CARRIER

SECOND STAGE CARRIER - planetary, Includes: Ref. 28 - 44

1шт.

28

P536249

RING, SNAP

SNAP RING - bearing housing

1шт.

29

P36258

RING, SNAP

SNAP RING - bearing

1шт.

30

P1139844

BEARING

BALL BEARING - swing gear shaft, upper

1шт.

31

P651270

SEAL

- upper bearing

1шт.

32

P2728953

FLANGE

HOUSING - bearing

1шт.

33

P3739391

PINION

SWING GEAR AND SHAFT - transmission

1шт.

34

P8046028

SEAL

- lower bearing

1шт.

35

P1139845

BEARING

BALL BEARING - swing gear shaft, lower

1шт.

36

P30485

O-RING

- housing, small

1шт.

37

P2130491

O-RING,0.103" Thk x 8" ID, -171, Cl 5, 75 Duro

- housing, large

1шт.

38

P732975

SCREW

BOLT - hex socket, 10 mm x 40 mm, grade 10.9

3шт.

39

P1245224

LINING

SEAL - bolt

1шт.

40

P433813

SCREW

BOLT - hex head, 8 mm x 10 mm

1шт.

41

P5140308

HOUSING

- swing gear (Order (1) Swing Gear & housing P2978504, (1) housing P4839356 & (3) bolt P4329378) (See T.I.N. Nbr 3152)

1шт.

42

P1337431

PLUG

- gear housing

2шт.

43

P146093

WASHER, SEALING

SEAL - plug

2шт.
