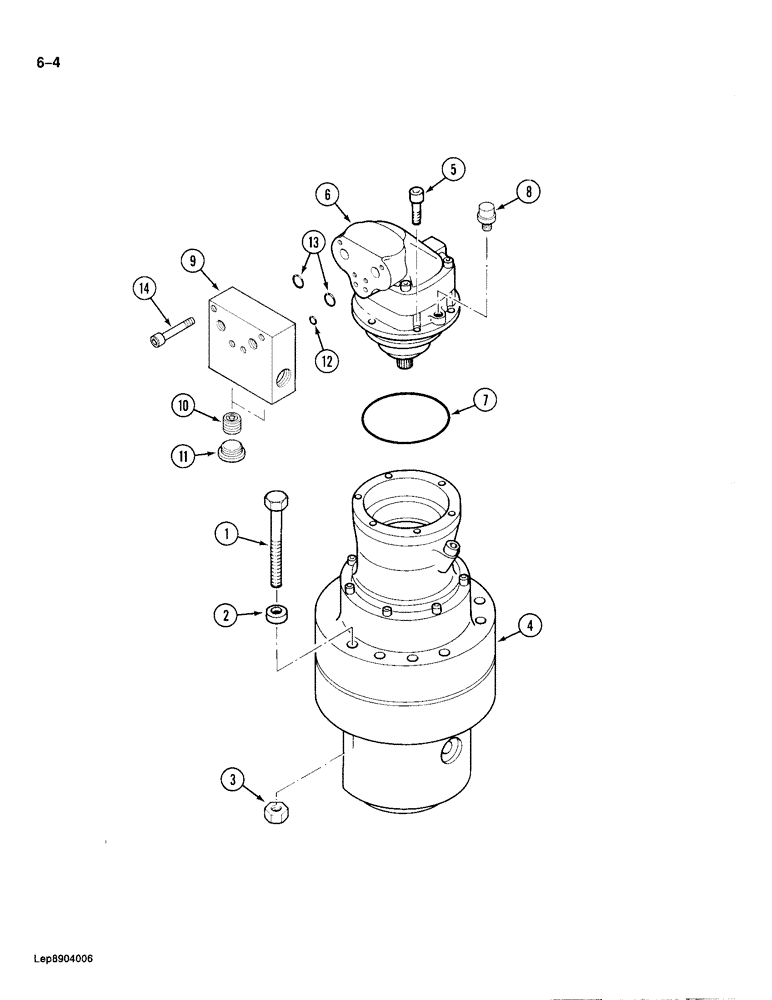

Запчасти Case 688 (6-04) - HYDRAULIC MOTOR TO SWING TRANSMISSIONS (06) - POWER TRAIN

1

P1633867

SCREW

BOLT - hex socket, 20 mm x 180 mm, grade 10.9

12шт.

2

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

Ref #2 - Adopt P5428789

1шт.

3

P134106

NUT

- hex, 20 mm

8шт.

4

REF

INSTRUCTION

SWING TRANSMISSION ASSEMBLY - excavator, see Figures 6-10 and 6-12

1шт.

5

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

6шт.

6

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - SWING, see Figure 8C-38

1шт.

7

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- swing, Serial Range: motor-transmission

1шт.

8

P4043386

VALVE POPPET

BREATHER - swing motor, Includes: Ref. 9 - 13

1шт.

P7046042

SEAL

- breather

1шт.

P4743307

SHIN

VALVE - swing motor feeding

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - feed valve

1шт.

10

P943367

VALVE POPPET

POPPET - valve

2шт.

11

P2537430

PLUG

- valve

2шт.

P945294

SEAL

- plug

2шт.

12

P2930470

SEAL

O-RING - swing motor to feed valve

1шт.

13

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- swing motor to feed valve

2шт.

14

P332908

SCREW

BOLT - hex, 8 mm x 65 mm

4шт.
