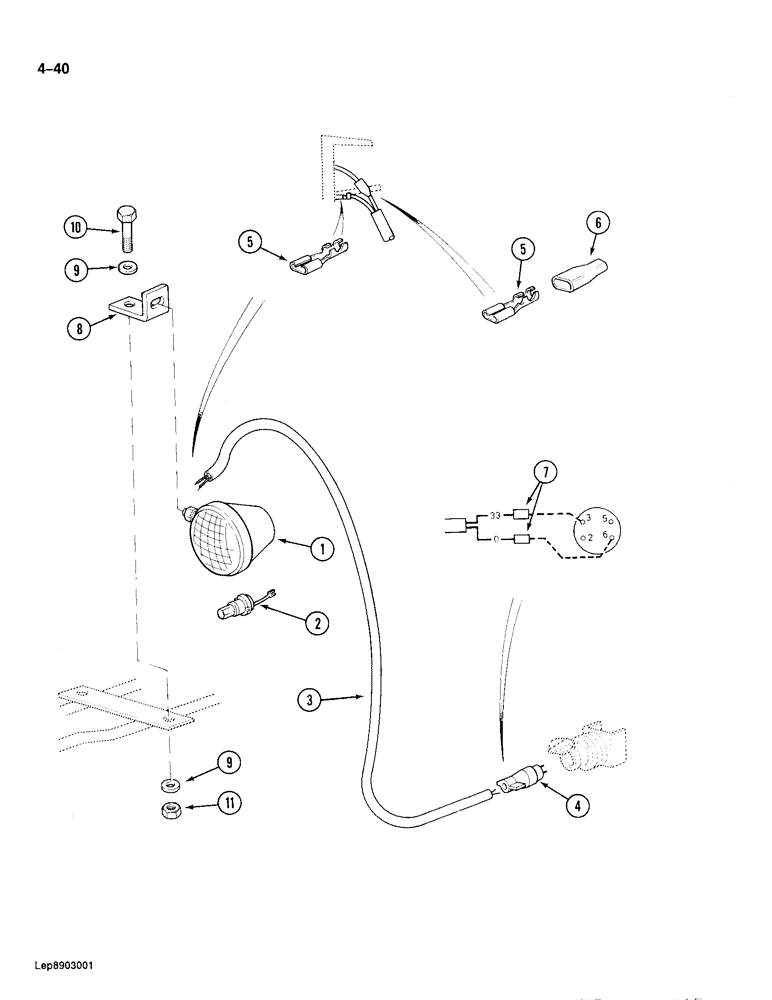

Запчасти Case 688 (4-40) - BOOM CYLINDER LAMP (04) - ELECTRICAL SYSTEMS

1

P841727

HEADLIGHT

LAMP - boom cylinder

1шт.

2

P340501

LAMP

BULB - lamp

1шт.

3

REF

INSTRUCTION

HARNESS - boom lamp, 126" long, cut from P4565

1шт.

4

P40741

CONNECTOR,ELECTRIC

PLUG - boom lamp harness

1шт.

5

P40940

TERMINAL

CLIP - harness

2шт.

6

P41471

LIGHT FAIRING

COVER - wire clip

1шт.

7

P40935

END FITTING

TERMINAL - male, Serial Range: plug-harness

2шт.

8

P4825649

SUPPORT

BRACKET - lamp mounting

1шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

10

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread

1шт.

11

P134563

SAFETY NUT

NUT - hex, 10 mm

1шт.
