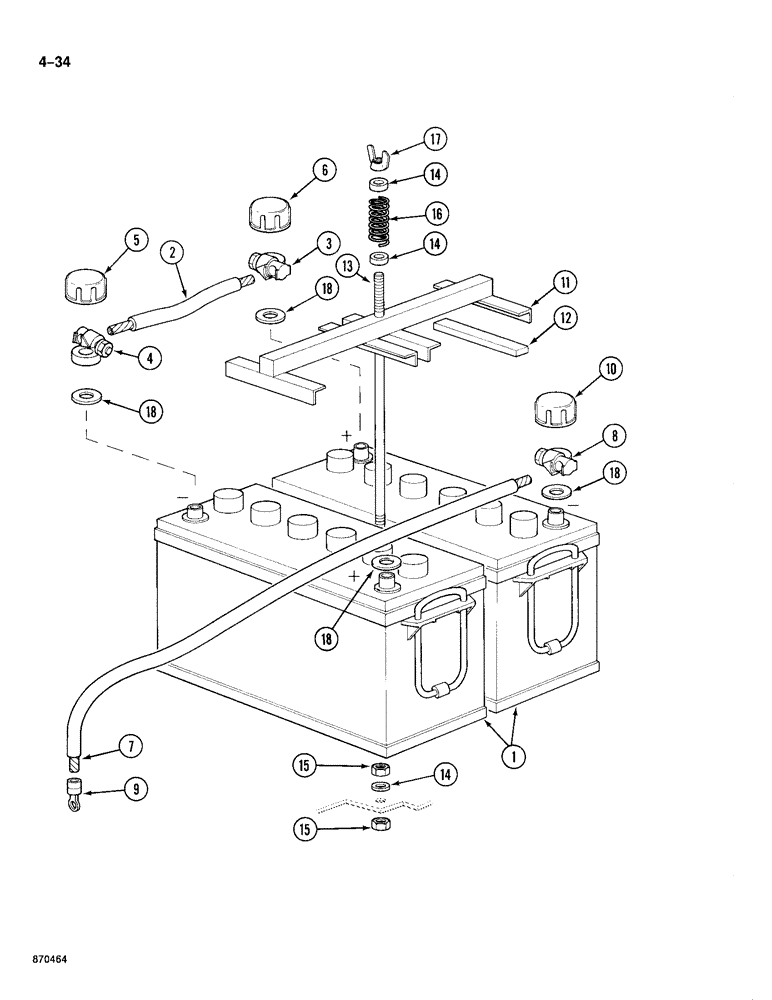

Запчасти Case 688 (4-34) - BATTERIES, BATTERY MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

P1241858

BATTERY, DRY

BATTERY - engine electrical, 12 volt

2шт.

P947255

CABLE

ASSEMBLY, jumper, battery to battery, 400 mm long, Replaces: P147210, Includes: Ref. 2 - 12

1шт.

P147210 Cable Assy was 350 mm long.

1шт.

2

REF

INSTRUCTION

CABLE - jumper, battery to battery, 15-3/4" long, cut from P104520

1шт.

3

P40920

CLAMP

TERMINAL - battery cable, positive

1шт.

4

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

5

P2340451

DOOR COVER

CAP - terminal protector, black

2шт.

6

P2340452

DOOR COVER

CAP - terminal protector, red

2шт.

P352219

CABLE

ASSEMBLY - battery negative post to ground (Replaces P2847226)

1шт.

7

REF

INSTRUCTION

CABLE - battery to ground, 48-1/2" long, cut from P104520

1шт.

8

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

9

P40934

TERMINAL CONNECTOR

TERMINAL - battery cable, at ground

1шт.

10

P2340451

DOOR COVER

CAP - terminal protector, black

1шт.

11

P5328264

SHIN

RETAINER - battery

1шт.

12

REF

INSTRUCTION

PROTECTOR - battery edge, rubber, 6" long, cut from P403145, use P3578 cement to attach to retainer

4шт.

13

P2527722

TRUSS ROD

TIE ROD - battery retainer

1шт.

14

P4328796

WASHER

SPACER - bolt, 7 mm thick

3шт.

15

100016

NUT,M10 x 1.5, Cl 8

2шт.

16

P38165

COMPRESSION SPRING

SPRING - battery retainer

1шт.

17

P34410

THUMB SCREW

WING NUT - tie rod

1шт.

18

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protector set

2шт.
