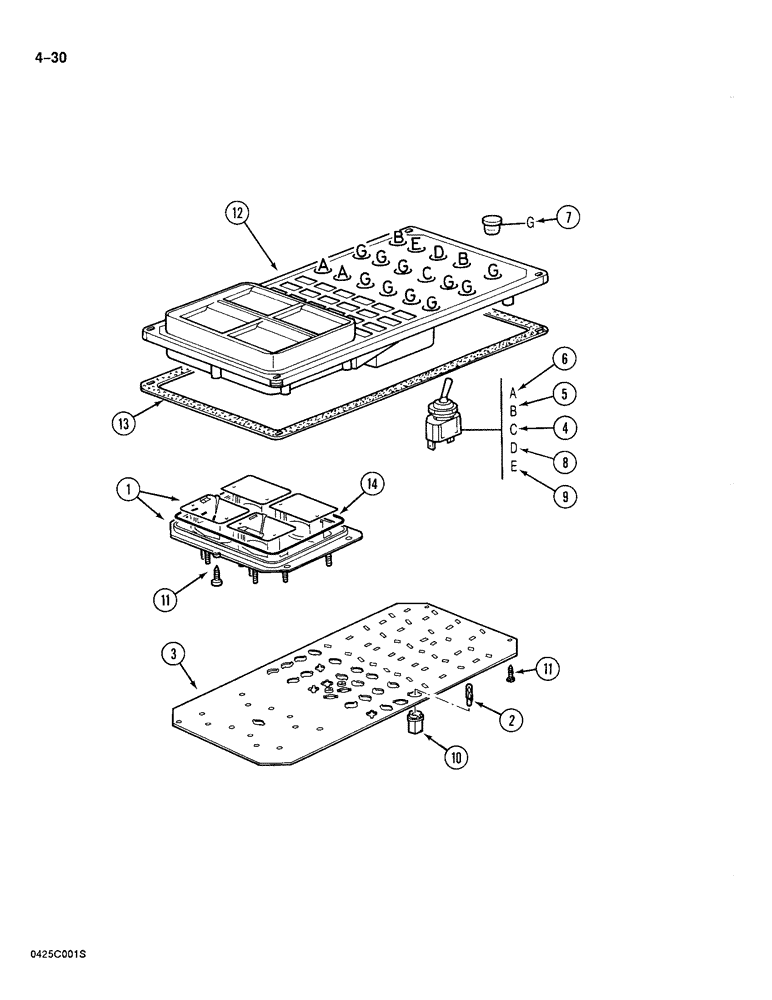

Запчасти Case 688 (4-30) - ELECTRICAL CONTROL PANEL (04) - ELECTRICAL SYSTEMS

P7043868

PANEL, INSTRUMENTS

PANEL ASSEMBLY - control, complete, Includes: Ref. 1 - 14

1шт.

1

P2241077

BOTTOM

INSTRUMENT CLUSTER - control panel

1шт.

2

P40506

LAMP

BULB - control panel lamp

11шт.

3

P151685

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - control panel

1шт.

4

P641609

SWITCH

- toggle, control panel, "C" location

1шт.

5

P641611

SWITCH

- toggle, control panel, "B" location

2шт.

6

P641619

IGNITION SWITCH

SWITCH - toggle, control panel, "A" location

2шт.

7

P1540469

BLANK-OFF PLUG

PLUG - control panel, "G" location

10шт.

8

P1541680

IGNITION SWITCH

SWITCH - toggle, control panel, "D" location

1шт.

9

P2741622

SWITCH

- toggle, control panel, "E" location

1шт.

10

P1941442

SUPPORT

SOCKET - control panel lamp

11шт.

11

P2033026

SCREW

- printed circuit to panel and, Serial Range: cluster-cover

8шт.

12

P2241076

FRAME

COVER - control

1шт.

13

P7546028

SEAL

GASKET - control panel, Serial Range: cover-console

1шт.

14

P7546029

SEAL

GASKET -, Serial Range: cluster-cover

1шт.
