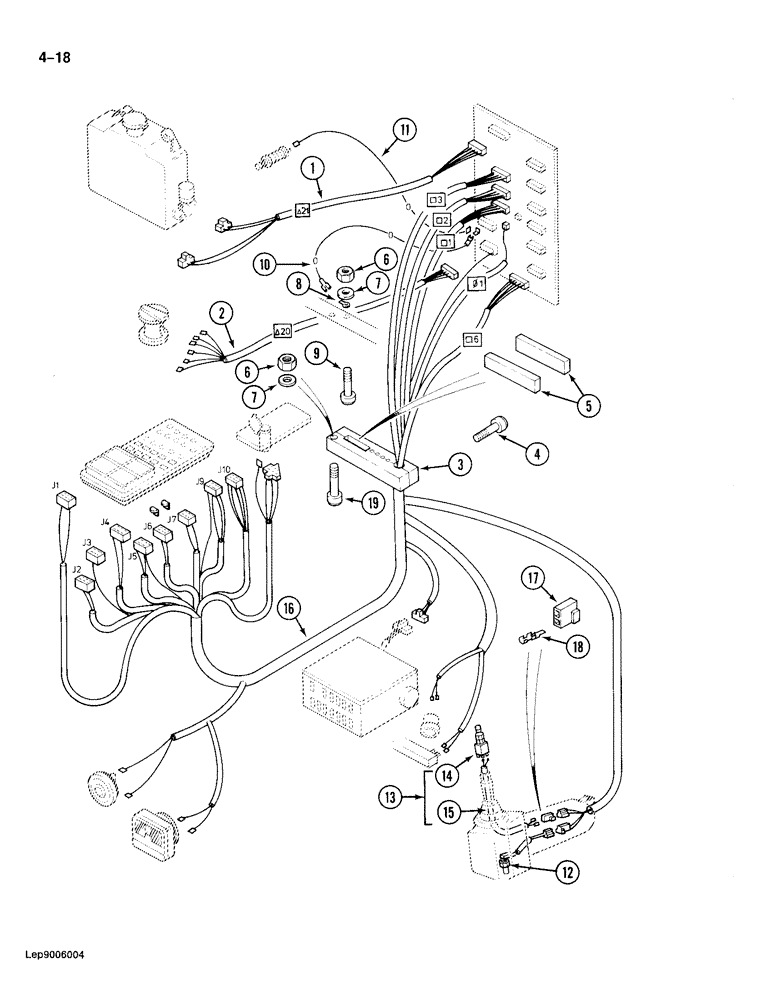

Запчасти Case 688 (4-18) - CAB ELECTRICAL HARNESS, P.I.N. FROM 11725 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P8647289

HARNESS

- to windshield washer motor

1шт.

2

P8647290

CABLE

HARNESS - to cab harness socket

1шт.

3

P8346231

SHIN

CLAMP ASSEMBLY - harness to panel, Includes: Ref. 4 & 5

1шт.

4

P433846

SCREW

BOLT - hex, 6 mm x 50 mm

2шт.

5

REF

INSTRUCTION

PROTECTOR - clamp, rubber, 3/8" long, cut from P3127

2шт.

6

P34108

NUT

- hex, 5 mm

4шт.

7

P4328718

WASHER

SPACER - screw, 3 mm thick

4шт.

8

P640965

CONNECTION

CLIP - wire, male

1шт.

9

P32538

SCREW

BOLT - hex, 5 mm x 16 mm

1шт.

10

P9247238

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: ground-panel

1шт.

REF

INSTRUCTION

WIRE - ground, 7-7/8" long, cut from P104506

1шт.

P40949

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

11

P9247241

ELECTRICAL WIRE

WIRE ASSEMBLY - to cigarette lighter

1шт.

REF

INSTRUCTION

WIRE - cigarette lighter, 19-3/4" long, cut from P31254

1шт.

P2036955

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

P1540485

LIGHT FAIRING

COVER - wire clip

2шт.

12

P2141699

DETECTOR

SAFETY SWITCH AND HARNESS - at hand control console (Order P2741650), Serial Range: 11601-11736

1шт.

12

P2741650

DETECTOR

SAFETY SWITCH AND HARNESS - at hand control console, Start Serial: 11737

1шт.

13

P2141681

REVERSER

BUTTON AND SWITCH ASSEMBLY - horn control, Includes: Ref. 14 & 15

1шт.

14

P1541665

SWITCH

- horn control

1шт.

15

NSS

NOT SOLD SEPARAT

HARNESS - horn control

1шт.

16

P1652222

HARNESS

- main, instrument panel

1шт.

17

P740848

CASE

CONNECTOR - female, 2-way

1шт.

18

P40938

CONNECTION

CLIP - wire retainer

2шт.

19

P833887

SCREW

BOLT - hex, 5 mm x 40 mm

2шт.
