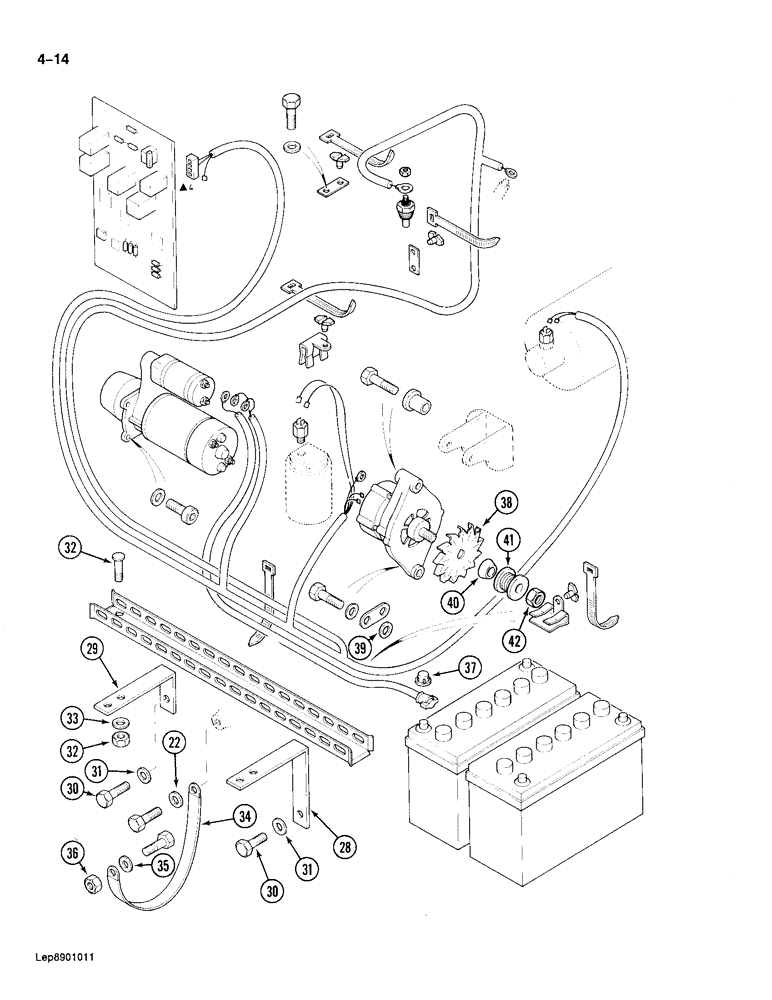

Запчасти Case 688 (4-14) - ENGINE ELECTRICAL SYSTEM, HARNESS GUARD AND ENGINE GROUND CABLE (04) - ELECTRICAL SYSTEMS

28

P4825652

ANGLE

SUPPORT - harness guard, long

1шт.

29

P4825653

ANGLE

SUPPORT - harness guard, short

1шт.

30

P533837

SCREW

BOLT - hex, 12 mm x 40 mm

2шт.

31

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

32

P933102

BOLT - hex, 6 mm x 20 mm, Includes: Nut

4шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

3

P35001

WASHER

- lock, M8

4шт.

34

P1047299

NEG BATTERY CABLE

CABLE - engine, Serial Range: ground-frame

1шт.

35

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

36

P34113

NUT

- hex, 8 mm

1шт.

37

P2340452

DOOR COVER

CAP - terminal protector, red

1шт.

38

P3543239

VENTILATOR

FAN - alternator

1шт.

39

P3145329

WASHER

- lock, rotor shaft

1шт.

40

P1929044

CONE

RETAINER - pulley

1шт.

41

P1538563

PULLEY

- drive

1шт.

42

P34116

NUT

- rotor shaft

1шт.
