(4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11676 AND AFTER

Запчасти Case 688 (4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11676 AND AFTER (04) - ELECTRICAL SYSTEMS

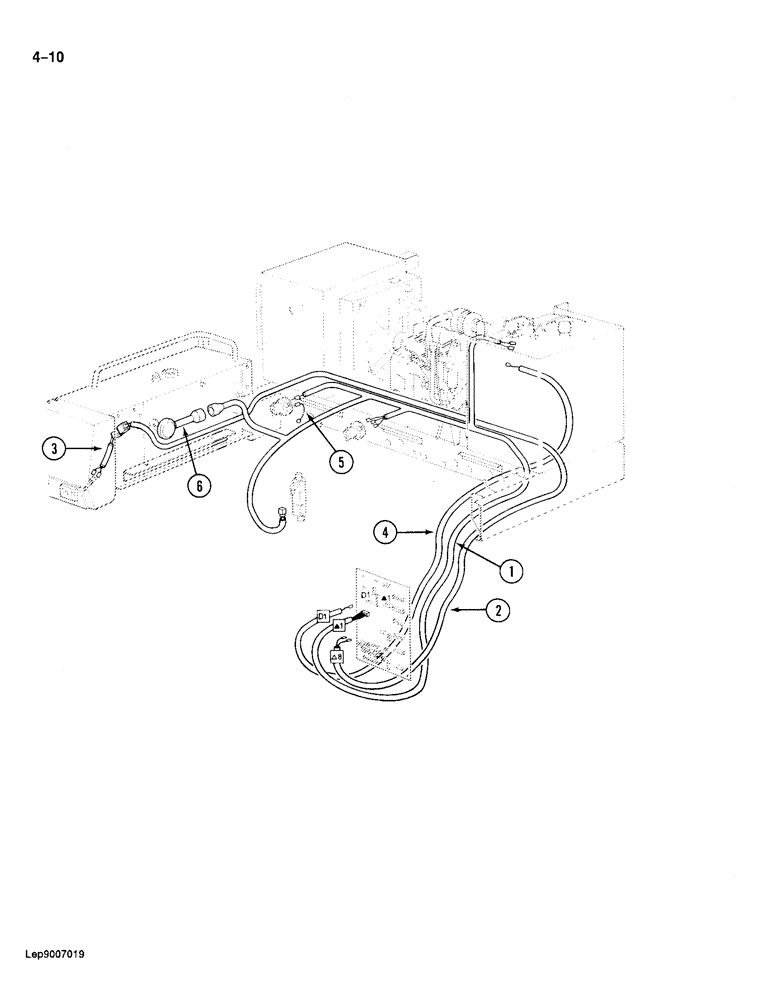

Схема запчастей Case 688 - (4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11676 AND AFTER (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P1352242

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

Serviced according to SPS and /or supplier availability, order either of the two references.

1шт.

1

P1352243

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

Serviced according to SPS and /or supplier availability, order either of the two references.

1шт.

2

P352292

CABLE

HARNESS - circuit board to front work lamp

1шт.

3

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.

4

P9247283

CABLE

HARNESS ASSEMBLY - electrical at circuit board

1шт.

5

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

6

P1352244

HARNESS

- electrical fuel gauge to main harness

1шт.

Serviced according to SPS and /or supplier availability, order either of the two references.

1шт.

6

P1352245

HARNESS

- electrical fuel gauge to main harness

1шт.

Serviced according to SPS and /or supplier availability, order either of the two references.

1шт.
