(4-08) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11601 TO 11675

Запчасти Case 688 (4-08) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11601 TO 11675 (04) - ELECTRICAL SYSTEMS

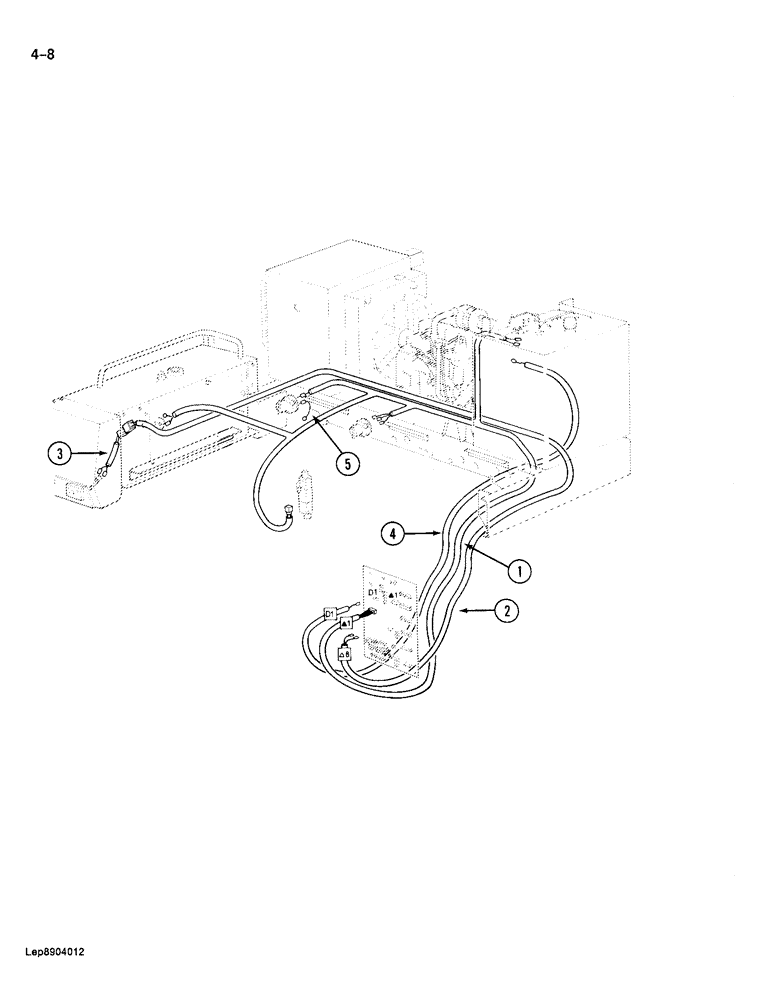

Схема запчастей Case 688 - (4-08) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 11601 TO 11675 (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P352285

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

2

P352292

CABLE

HARNESS - circuit board to front work lamp

1шт.

3

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.

4

P9247283

CABLE

HARNESS ASSEMBLY - electrical at circuit board

1шт.

5

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.
