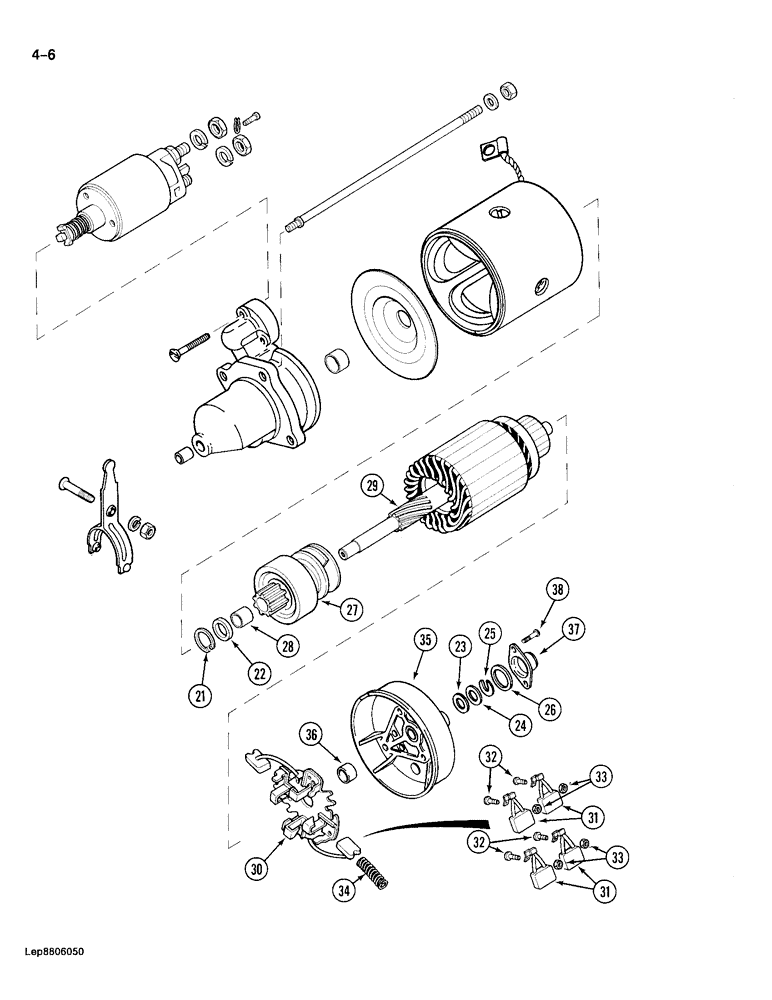

Запчасти Case 688 (4-06) - STARTER, 4T-390 DIESEL ENGINE, CONTD (04) - ELECTRICAL SYSTEMS

A186142

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, Robert Bosh Number 0001368069, Includes: Ref. 21 - 38 on this figure & Ref. 1 - 20 on Figure 4-4

1шт.

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN A186142

1шт.

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

3079555R91

PACKAGE

KIT - armature parts, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

22

NSS

NOT SOLD SEPARAT

RING - stop

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM - armature

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - armature

1шт.

25

NSS

NOT SOLD SEPARAT

CLIP - retainer

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - end cover

1шт.

1964677C1

DRIVE

DRIVE ASSEMBLY - starter, Includes: Ref. 27 & 28

1шт.

27

3079254R1

BUSHING

BUSHING - drive

1шт.

28

NSS

NOT SOLD SEPARAT

DRIVE - starter

1шт.

29

3079434R1

ARMATURE

ARMATURE - starter

1шт.

30

3079443R1

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, includes two brushes and connecting wires as integral part of holder

1шт.

3079435R91

BRUSH, COMMUTATOR

BRUSH KIT - for complete brush replacement, connecting wires are cut and brushes are fastened with screws and nuts, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

BRUSH - starter

4шт.

32

NSS

NOT SOLD SEPARAT

SCREW - brush mounting

4шт.

33

NSS

NOT SOLD SEPARAT

NUT - terminal screw

4шт.

34

3079420R1

SPRING

SPRING - brush tension

4шт.

3079169R91

COVER

HOUSING ASSEMBLY - brush, Includes: Ref. 35 & 36

1шт.

35

3079170R1

BUSHING

BUSHING - brush housing

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - brush

1шт.

37

3079177R1

CAP

COVER - commutator end

1шт.

38

3079426R1

SCREW

SCREW - cover mounting, 5 mm x 15 mm

2шт.
