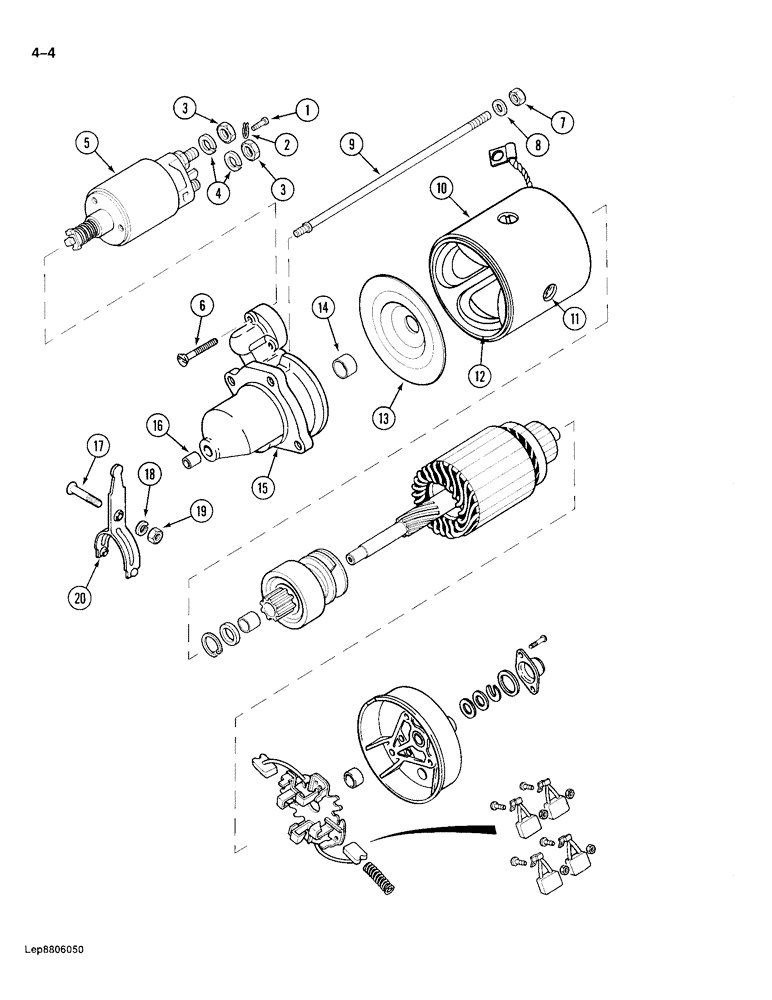

Запчасти Case 688 (4-04) - STARTER, 4T-390 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A186142

STARTING MOTOR

STARTER ASSEMBLY - 24 volt, Robert Bosh Number 0001368069, Includes: Ref. 1 - 20 on this figure & Ref. 21 - 38 on Figure 4-6

1шт.

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN A186142

1шт.

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

K965151

SCREW

SCREW - solenoid

1шт.

2

A186241

CLAMP

CLIP - solenoid

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

NUT, (Solenoid terminal) M10, Cl 8

2шт.

4

A186240

WASHER

WASHER - lock, terminal nut, 10 mm

2шт.

5

1964679C1

SOLENOID

SOLENOID ASSEMBLY - starter

1шт.

6

K965140

SCREW,M5 x 45mm

SCREW - solenoid mounting

3шт.

7

30208R1

NUT,M6, Cl 10

NUT - through bolt, 6 mm

2шт.

8

3079176R1

WASHER

WASHER - through bolt, 6 mm

2шт.

9

3079355R1

SCREW

BOLT - through

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

11

3079552R1

BOLT,Flat

SCREW - coil mounting

4шт.

12

3079428R91

COIL

COIL - field, includes two brushes and connecting wire as integral part of coil

1шт.

3079253R91

HOUSING, BEARING

BRACKET ASSEMBLY - intermediate, Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - intermediate

1шт.

14

K260702

BUSHING

BUSHING - bracket

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - drive

1шт.

16

3055738R1

BUSHING

BUSHING - drive housing

1шт.

17

3079430R1

BOLT,Flat

BOLT - pivot, drive actuating lever

1шт.

18

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 mm

1шт.

19

825-1108

NUT,Hex, M8, Cl 8

NUT, Hex, M8, Cl 8

1шт.

20

1964678C1

LEVER

LEVER - drive actuating

1шт.
