Запчасти Case 688 (2-48) - FLYWHEEL AND HOUSING, 4T-390 ENGINE (02) - ENGINE

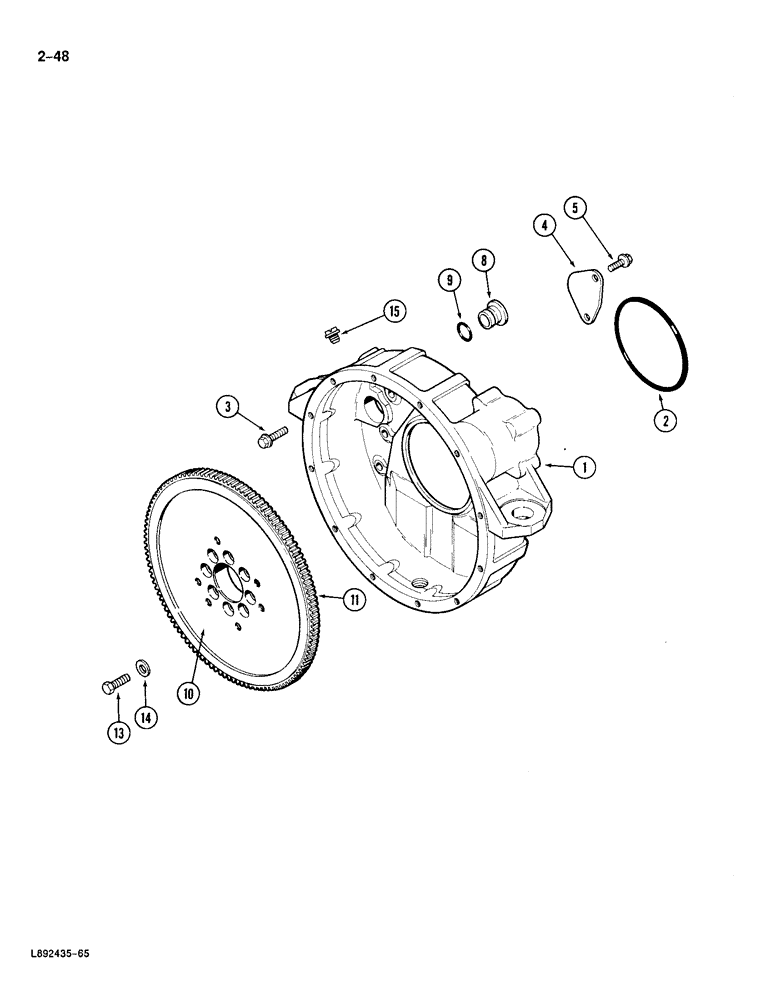

Схема запчастей Case 688 - (2-48) - FLYWHEEL AND HOUSING, 4T-390 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J903287

CASE

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 40 mm

8шт.

4

J908095

PLATE

- cover, housing

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange, self tapping, 8 mm - 1.25 x 21 mm

2шт.

8

J910248

PLUG

- housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing (Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

10

J907466

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 11

1шт.

11

J905427

GEAR

- flywheel

1шт.

13

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex head, 12 mm - 1.25 x 32 mm

8шт.

14

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

- plastic, slotted hex, 3/4 NF

1шт.

Выбрано товаров: 12
