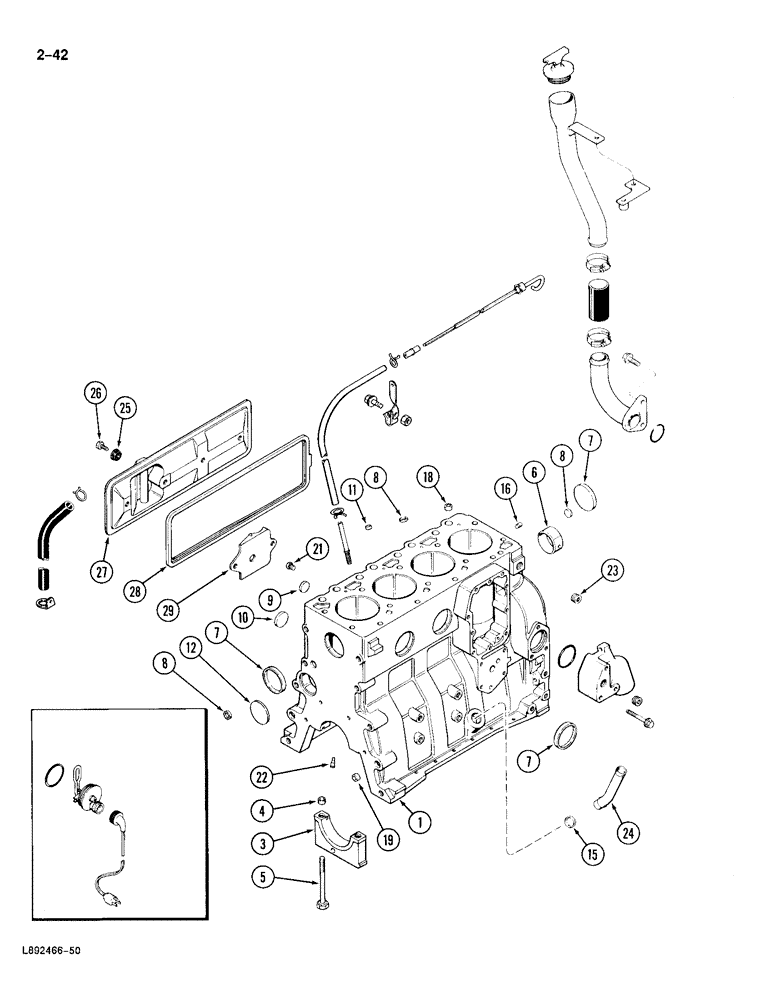

Запчасти Case 688 (2-42) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

A174288

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 4T-390, complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (1.1 to 1 Ratio) (See Figure 9B-02

1шт.

1989092C3R

REMAN-BASIC ENGINE

Reman for New PN A174288

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

A174352

BASIC ENGINE

includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing

1шт.

JR905378

BLOCK

BLOCK ASSEMBLY - short, engine remanufactured (North America only)

1шт.

JC905378

CORE-ENGINE

Return Part Number - use this part number to return short block core for credit

1шт.

J905378

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Order short block and J905813 kit)

1шт.

1

J905376

CRANKCASE

BLODK ASSEMBLY - stripped, engine (Order block and J905813 kit), Includes: Ref. 3 - 23

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

DOWEL - ring, bearing cap

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

10шт.

7

J900965

PLUG

PLUG - expansion, 58-1 mm OD

4шт.

8

J900956

PLUG

PLUG - expansion, 17.9 mm OD

3шт.

9

A77539

PLUG

PLUG - expansion, 25.7 mm OD

2шт.

J905813

PACKAGE, REPAIR

KIT - block hardware

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG - expansion, 9.8 mm OD

1шт.

12

J900687

PLUG

PLUG - expansion, (Welch), 60.3 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 22.5 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

DOWEL - ring, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket head, 1/8 inch PT

2шт.

22

J901020

NOZZLE CAP

NOZZLE - piston cooling

4шт.

23

A77429

PLUG

PLUG - hex socket head, 1/2 inch PT

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J916441

COVER

COVER - tappet

1шт.

28

J904056

GASKET

GASKET - tappet cover

1шт.

29

J907586

BAFFLE

BAFFLE - tappet cover

1шт.
