Запчасти Case 688 (2-36) - CYLINDER HEAD AND COVERS, 4T-390 ENGINE (02) - ENGINE

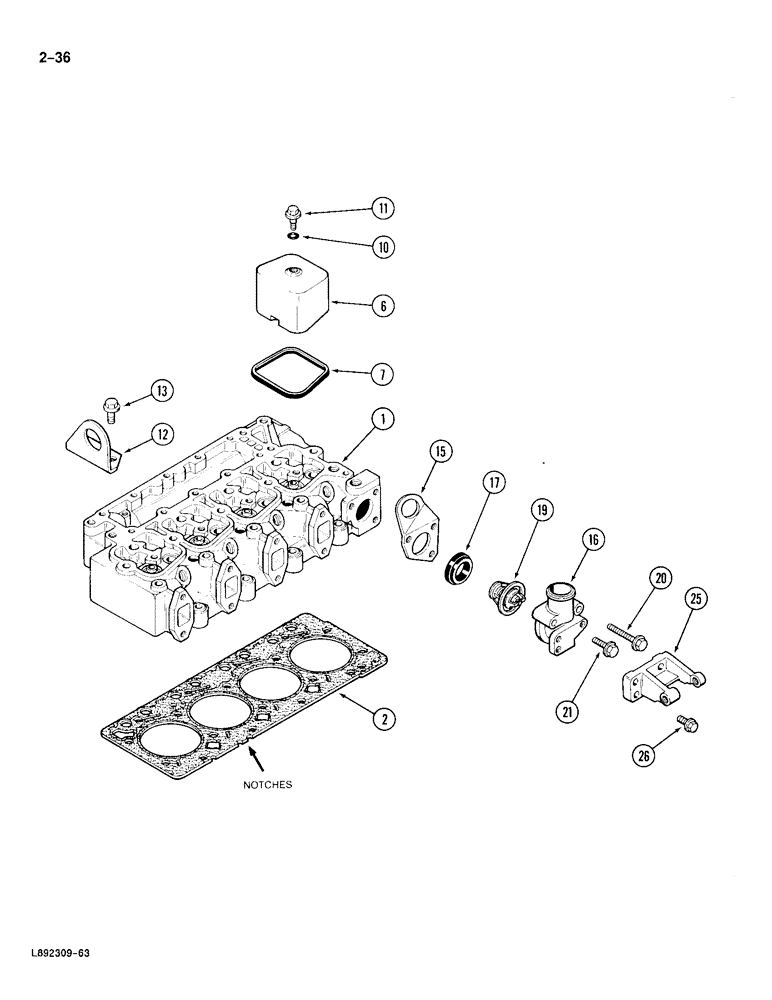

Схема запчастей Case 688 - (2-36) - CYLINDER HEAD AND COVERS, 4T-390 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, engine (See Figure 2-38)

1шт.

2

J917354

GASKET

- cylinder head, standard (1 Notch)

1шт.

2

J917355

GASKET

- cylinder head, 0.23 mm thicker (2 Notches)

1шт.

2

J917356

GASKET

- cylinder head, 0.51 mm thicker (3 Notches)

1шт.

6

J902604

COVER

- rocker

4шт.

7

J902666

GASKET

SEAL - rocker cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

4шт.

11

J907049

BOLT,Hex

- special, 8 mm - 1.25 x 21.25 mm

4шт.

12

J908118

BRACKET

- lifting, rear

1шт.

13

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

15

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

16

J914409

HOUSING

- thermostat

1шт.

17

J903301

GASKET

- housing, thermosstat

1шт.

19

J917324

THERMOSTAT

- water, 95 degree C (Replaces J912587), & housing

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange head, 8 mm - 1.25 x 70 mm, Thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, 8 mm - 1.25 x 35 mm, Thermostat and housing

1шт.

25

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

26

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Thermostat and housing Hex, M12 x 25, 8.8, Full Thd

3шт.

Выбрано товаров: 18
