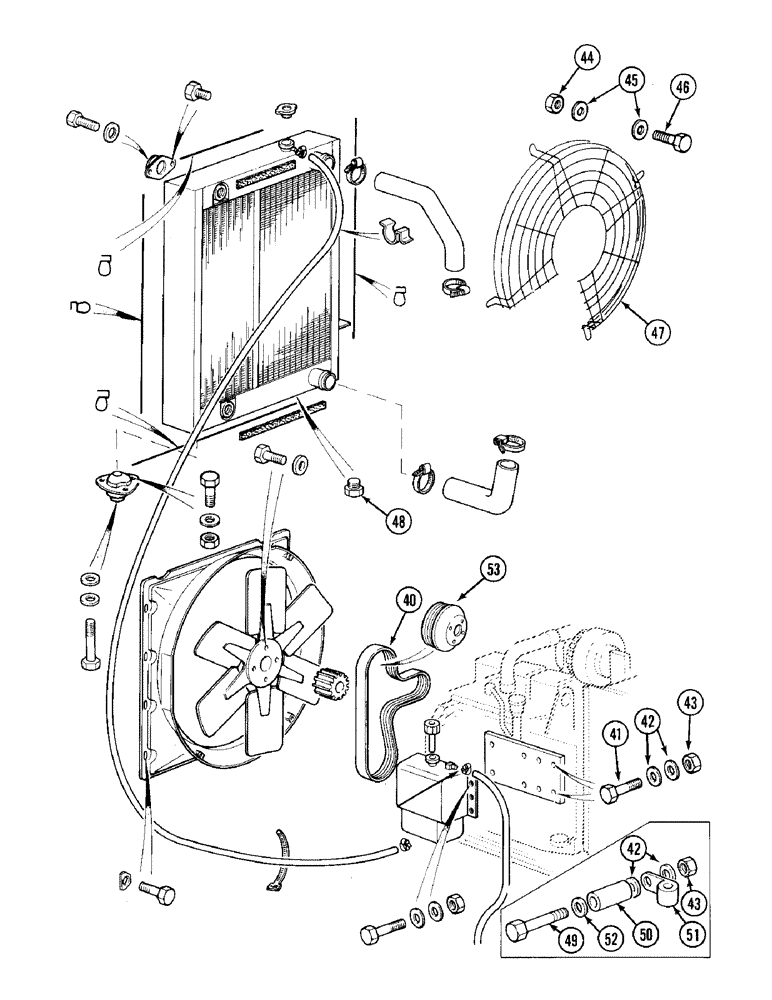

Запчасти Case 688 (2-14) - RADIATOR, OIL COOLER, HOSES AND COOLANT RECOVERY, P.I.N. FROM 11601 TO XXXXX, CONTD (02) - ENGINE

40

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Radiator Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

41

P933817

SCREW

BOLT - hex, 10 mm x 22 mm, full threaded

1-2шт.

42

P3528795

WASHER

SPACER - bolt, 7mm thick

4шт.

43

P34598

SAFETY NUT

NUT - hex self-locking, 10 mm

2шт.

44

P134596

SAFETY NUT

NUT - hex, self-locking 8 mm

4шт.

45

P3528794

WASHER

SPACER - bolt, 6 mm thick

8шт.

46

P233830

SCREW

BOLT - hex, 8 mm x 40 mm

4шт.

47

P2340490

PROTECTOR

GUARD - fan

1шт.

48

P1137424

PLUG

- 1/4" NPT, radiator

1шт.

49

P33832

SCREW

BOLT - hex, 10 mm x 110 mm, Serial Range: 11501-XXXXX

1шт.

50

P1231875

TUBE

- spacer, Serial Range: 11501-XXXXX

1шт.

51

P51921

CLAMP

- hose, large, Serial Range: 11501-XXXXX

1шт.

52

P4328796

WASHER

SPACER - bolt, 7 mm thick, Start Serial: XXXXX

1шт.

53

J914461

PULLEY

- engine, see Figure 2-18 for adapting parts, Start Serial: XXXXX

1шт.
