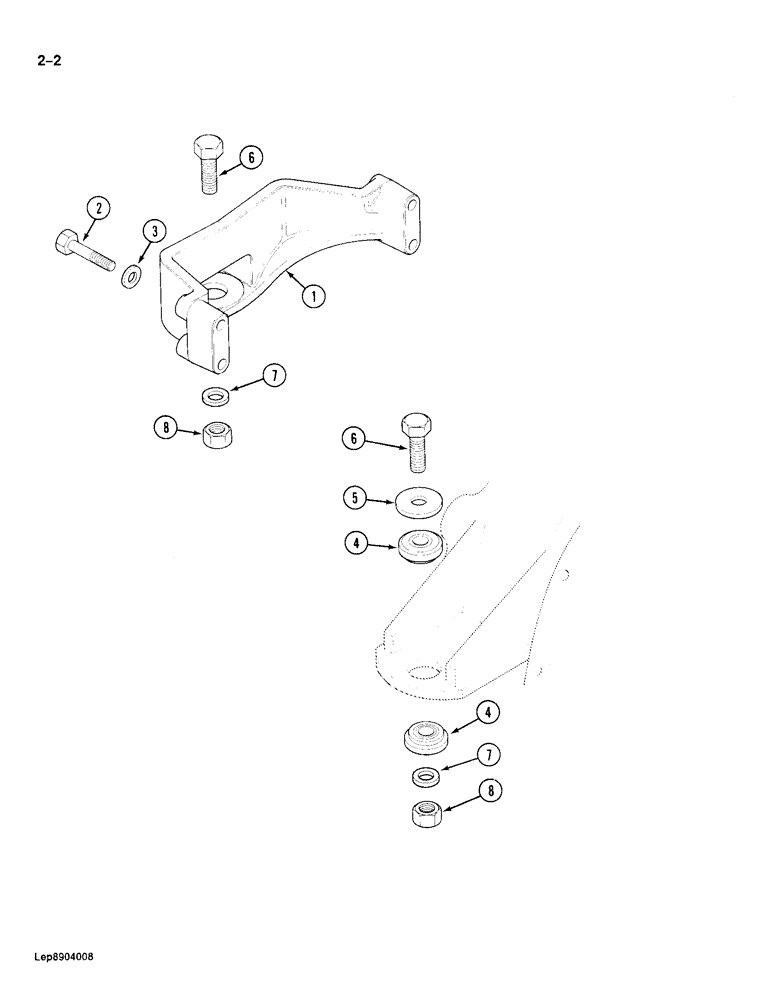

Запчасти Case 688 (2-02) - ENGINE MOUNTING (02) - ENGINE

1

A170985

BRACKET

SUPPORT - engine front

1шт.

2

P33844

SCREW

BOLT - hex, 12 mm x 90 mm

4шт.

3

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

4

R49921

RUBBER MOUNTING

INSULATOR - rubber, front and side engine mounting

6шт.

5

P2745406

WASHER

- special, rubber insulator mounting

3шт.

6

P33855

SCREW

BOLT - hex, 16 mm x 90 mm

3шт.

7

P3528790

WASHER

SPACER - bolt, 11 mm thick

3шт.

8

P34562

SAFETY NUT

NUT - hex, self-locking, 16 mm

3шт.
