(5-16) - TRACK ROLLER

Запчасти Case 688 (5-16) - TRACK ROLLER (11) - TRACKS/STEERING

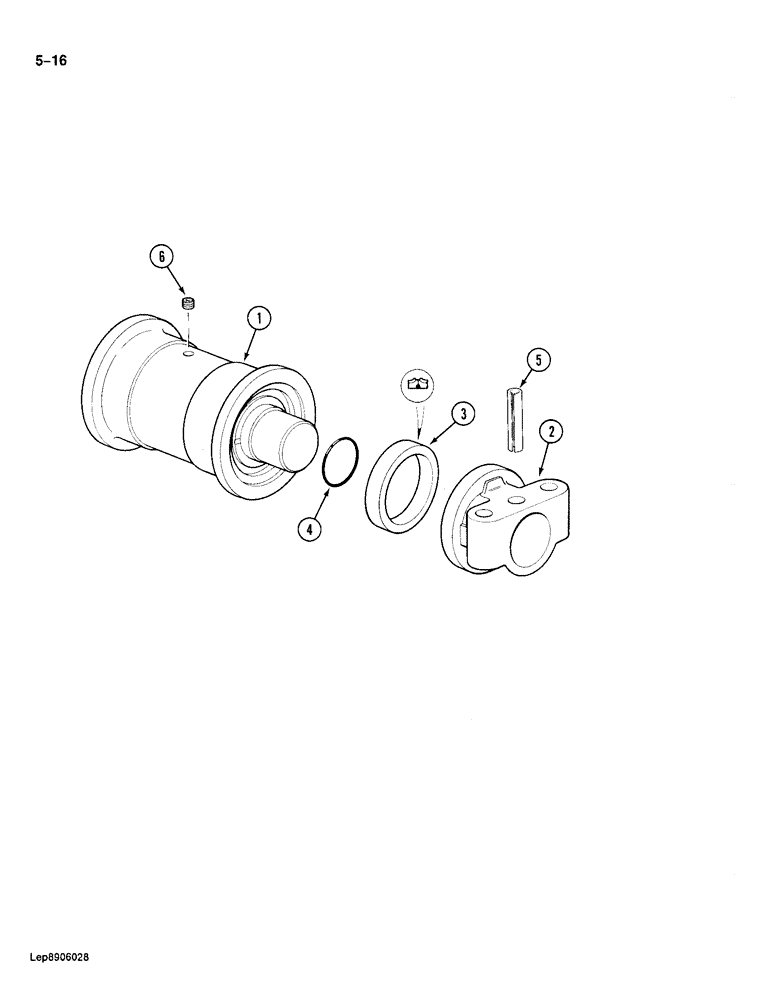

Схема запчастей Case 688 - (5-16) - TRACK ROLLER (11) - TRACKS/STEERING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P2042382

ROLLER, TRACK

TRACK ROLLER ASSEMBLY - complete, INTERTRAC identification, Includes: Ref. 1 - 6

14шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

3

P9346012

SET OF GASKET

SEAL - oil, roller shaft

2шт.

4

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- roller shaft

2шт.

5

P435751

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.

6

P2537437

PLUG

- filler, track roller

1шт.
