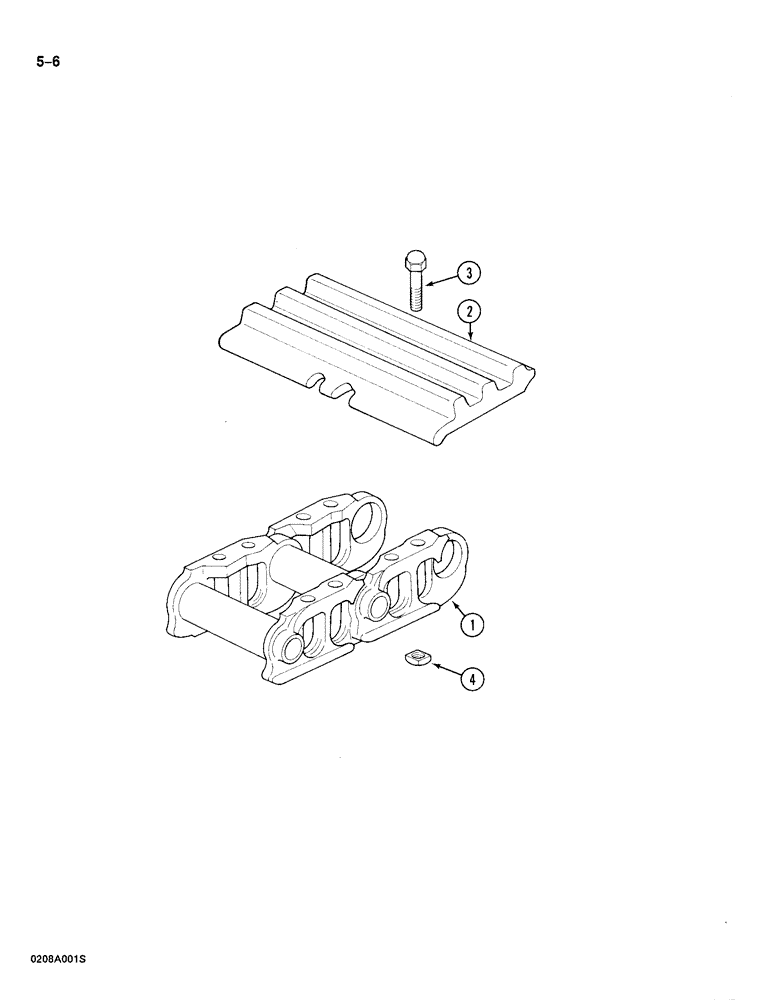

Запчасти Case 688 (5-06) - TRACK SHOES (11) - TRACKS/STEERING

1

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-8, Serial Range: 11601-11641

2шт.

2

P1642310

TRACK SHOE

- grouser, 24" long, Serial Range: 11601-11641

88шт.

3

P33041

SCREW

BOLT - track shoe, special, Serial Range: 11601-11641

352шт.

4

P134514

NUT

- track shoe, special, Serial Range: 11601-11641

352шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-8, Start Serial: 11642

2шт.

2

P2042352

TRACK SHOE

- grouser, 24" long, Start Serial: 11642

88шт.

3

P3533058

SCREW

BOLT - track shoe, special, Start Serial: 11642

352шт.

4

P2434593

NUT

- track shoe, special, Start Serial: 11642

352шт.
