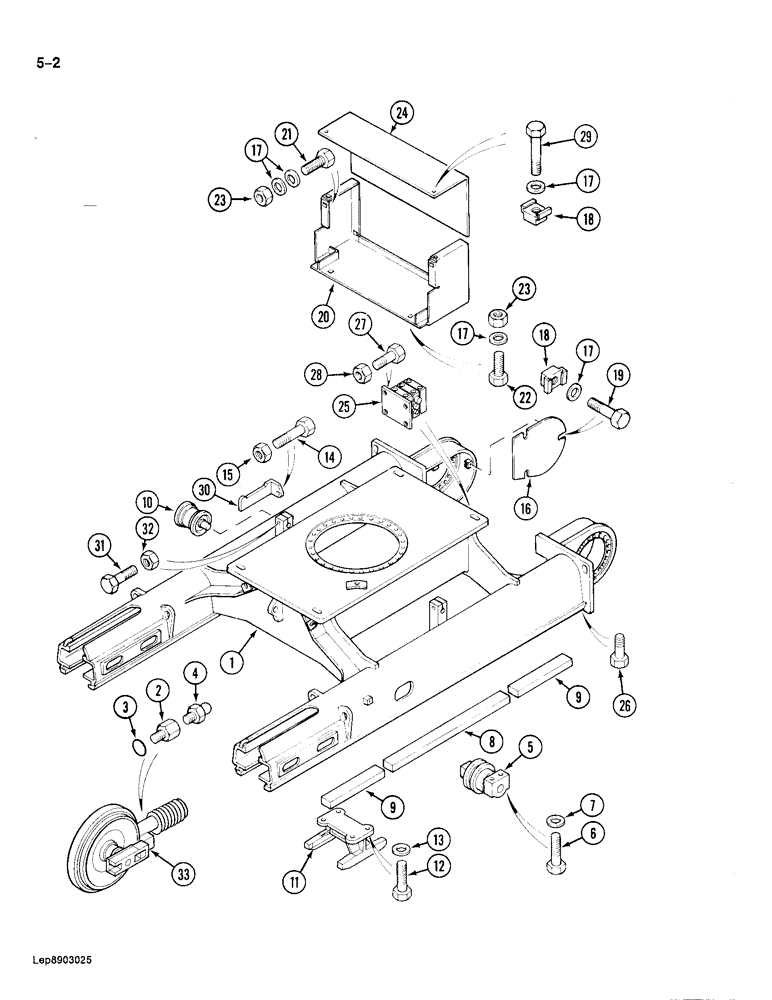

Запчасти Case 688 (5-02) - TRACK FRAME AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

P2154901

FRAME

TRACK FRAME AND UNDERCARRIAGE - excavator

1шт.

2

P2643387

ADAPTER

- grease fitting to track adjuster, Includes: Ref. 3 & 4

2шт.

3

P1145268

SEAL

- adapter

2шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.

5

REF

INSTRUCTION

TRACK-ROLLER - lower, see Figure 5-16

14шт.

6

P1133890

SCREW

BOLT - hex, 16 mm x 110 mm, grade 10.9

56шт.

7

P4628731

WASHER

SPACER - bolt, 6 mm thick

56шт.

8

P4420350

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, long

4шт.

9

P4420349

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, short

8шт.

10

P2242301

ROLLER, TRACK

TRACK ROLLER - upper (Replaces P1538577)

2шт.

P8846056

SET OF GASKET

SEAL - track roller

2шт.

11

P7428231

GUIDE

- track, front of undercarriage

2шт.

12

P233841

SCREW

BOLT - hex, 16 mm x 70 mm

8шт.

13

P4628731

WASHER

SPACER - bolt, 6 mm thick

8шт.

14

P133835

SCREW

BOLT - hex, 20 mm x 100 mm

2шт.

15

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

16

P2722569

COWL

GUARD - drive motor, inner

2шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

18

P2434525

NUT

- cage type, 10 mm

6шт.

19

P933818

SCREW

BOLT - hex, 10 mm x 40 mm (Replaces P732622)

6шт.

20

P926482

PROTECTOR

GUARD - drive control valve

1шт.

21

P833802

SCREW

BOLT - hex, 10 mm x 50 mm, full thread

2шт.

22

P233832

SCREW

BOLT - hex, 10 mm x 80 mm, full thread

1шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

24

P5125678

HOOD

COVER - drive control valve guard

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, see Figure 7-8

1шт.

26

P133802

SCREW

BOLT - hex, 16 mm x 40 mm

8шт.

27

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

4шт.

28

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

29

P933818

SCREW

BOLT - hex, 10 mm x 50 mm (Replaces P3333033)

4шт.

30

P2326789

STEP

- operator assist

2шт.

31

P833815

SCREW

BOLT - upper track roller, 24 mm x 120 mm

2шт.

32

P134566

SAFETY NUT

NUT - hex, self-locking, 24 mm

1шт.

33

REF

INSTRUCTION

TRACK IDLER ADJUSTMENT CYLINDER - undercarriage, see Figures 5-10 and 5-14

2шт.
