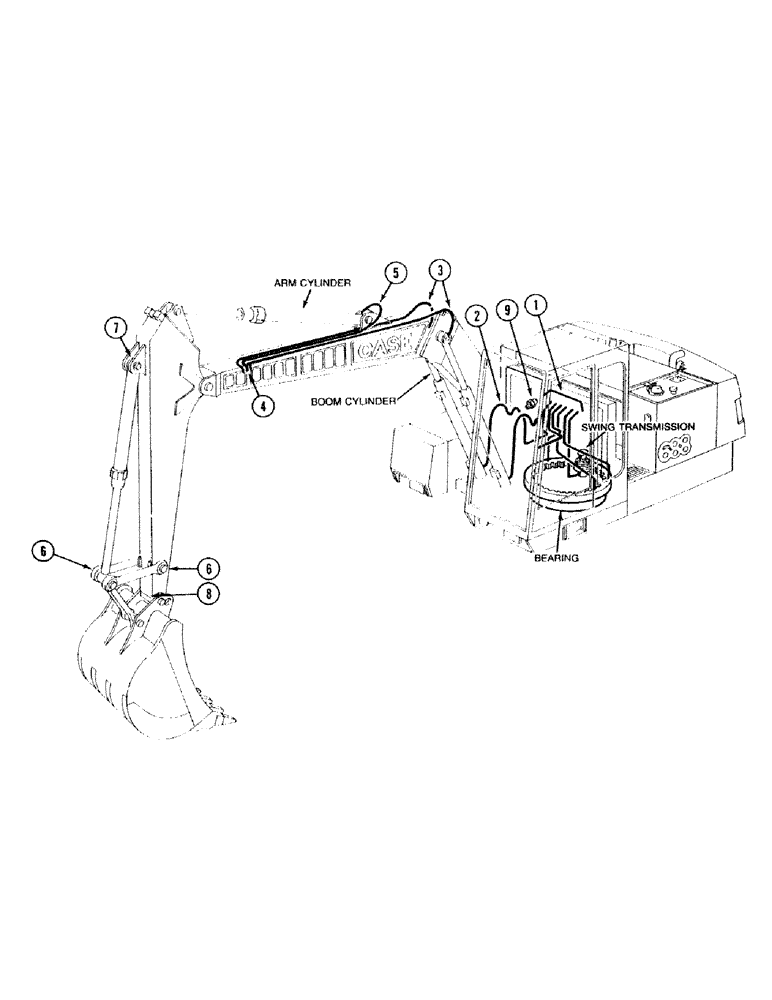

Запчасти Case 688 (1-28) - PICTORIAL INDEX, LUBRICATION LINES (00) - PICTORIAL INDEX

1

Tube Lubrication Turntable, Page 8H-3, 8H-5

1шт.

2

Hose, Boom Cylinders, Lower Lubrication, Page 8H-3, 8H-5

1шт.

3

Hose, Boom Cylinders, Upper Lubrication, Page 8H-7

1шт.

4

Tube, Lubrication, Page 8H-7

1шт.

5

Hose, Arm Cylinder Lubrication, Page 8H-7

1шт.

6

Grease Fitting, Link Lubrication, Page 9F-9

1шт.

7

Grease Fitting, Tool Cylinder, Page 8G-25

1шт.

8

Grease Fitting, Bucket Pin, Page 9F-5, 9F-7

1шт.

9

Grease Fitting, Boom Pin, Page 9F-3

1шт.
