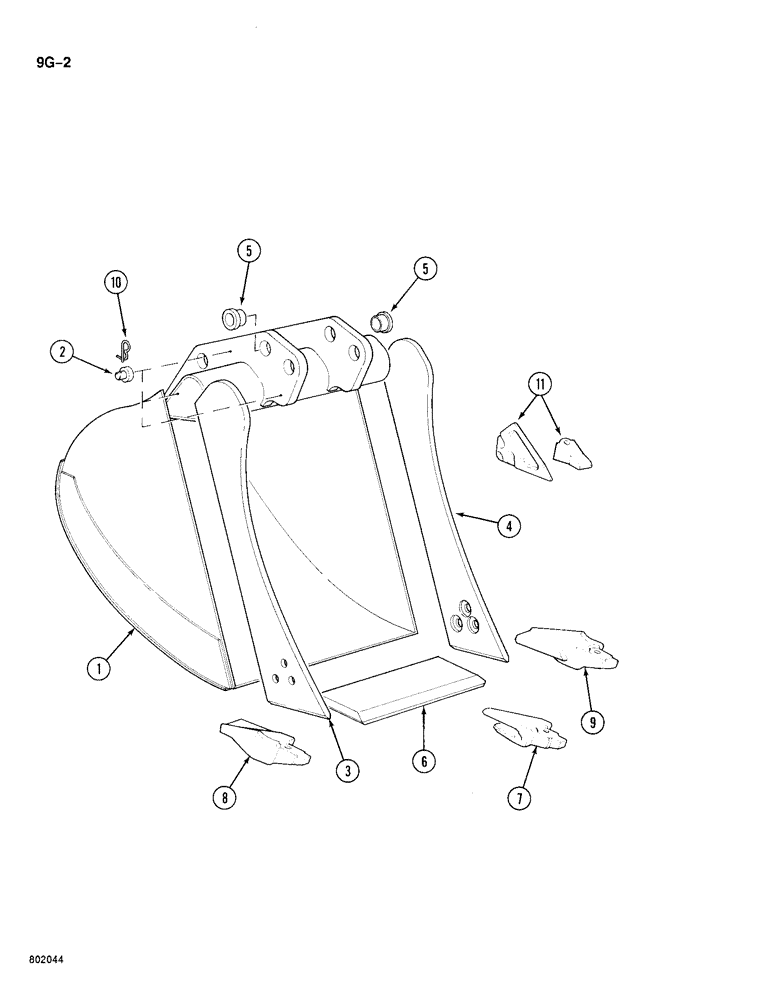

Запчасти Case 688 (9G-02[2]) - BACKHOE BUCKET, BACKHOE BUCKET - 29-1/2" WIDE (09) - CHASSIS

P2754949

BACKHOE BUCKET ASSEMBLY - excavator, 29 -1/2" wide

1шт.

Available from wholegoods department.

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator, 29 -1/2 inches wide

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin

3шт.

3

P4424280

STIFFENER

CUTTING EDGE - side left-hand

1шт.

4

P4424279

STIFFENER

CUTTING EDGE - side right-hand

1шт.

5

P5428744

BUSHING

- bucket pin, at arm and, Serial Range: link-bucket

6шт.

P1504042

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

7

P604276

SUPPORT

SHANK - tooth, center

1шт.

8

P1504047

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

9

P1504048

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see Figure 9G-10

1шт.
