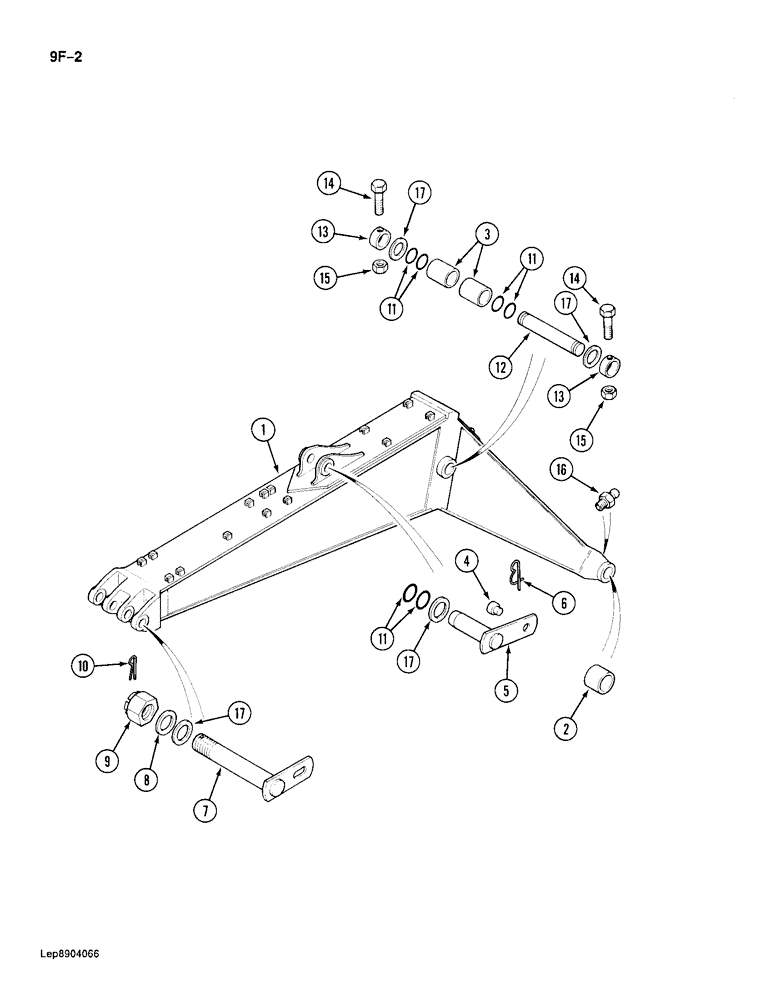

Запчасти Case 688 (9F-02) - BOOM AND CYLINDER MOUNTING PINS (09) - CHASSIS

P4754908

BOOM

ASSEMBLY - excavator, Includes: Ref. 1 - 4

1шт.

Available from wholegoods department.

1шт.

1

NSS

NOT SOLD SEPARAT

BOOM - excavator

1шт.

2

P1528673

BUSHING

- boom, at turntable

2шт.

3

P4628776

BUSHING

- boom, at upper cylinder mounting

2шт.

4

P1127863

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

5

P50388

HEADED PIN

PIN - mounting, arm, Serial Range: cylinder-boom

1шт.

6

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

7

P2930973

HEADED PIN

PIN - mounting, arm to boom, 70 mm

1шт.

Ref #7A - P3430912 Pin (60 mm)

1шт.

8

P34625

WASHER

- flat, 42 mm

1шт.

9

P34337

NUT

- hex, slotted, 42 mm

1шт.

10

P35558

SPLIT PIN

COTTER PIN - 8 mm x 100 mm long

1шт.

11

P151309

SEAL

- grease, bushing

6шт.

12

P1827668

PIN

- boom, Serial Range: cylinders-boom

1шт.

13

P5428765

BUSHING

RETAINER - pin

2шт.

14

P133887

SCREW

BOLT - hex, 12 mm x 110 mm

2шт.

15

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

2шт.

16

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

17

P145347

WASHER

- special, boom cylinder pin

1шт.
