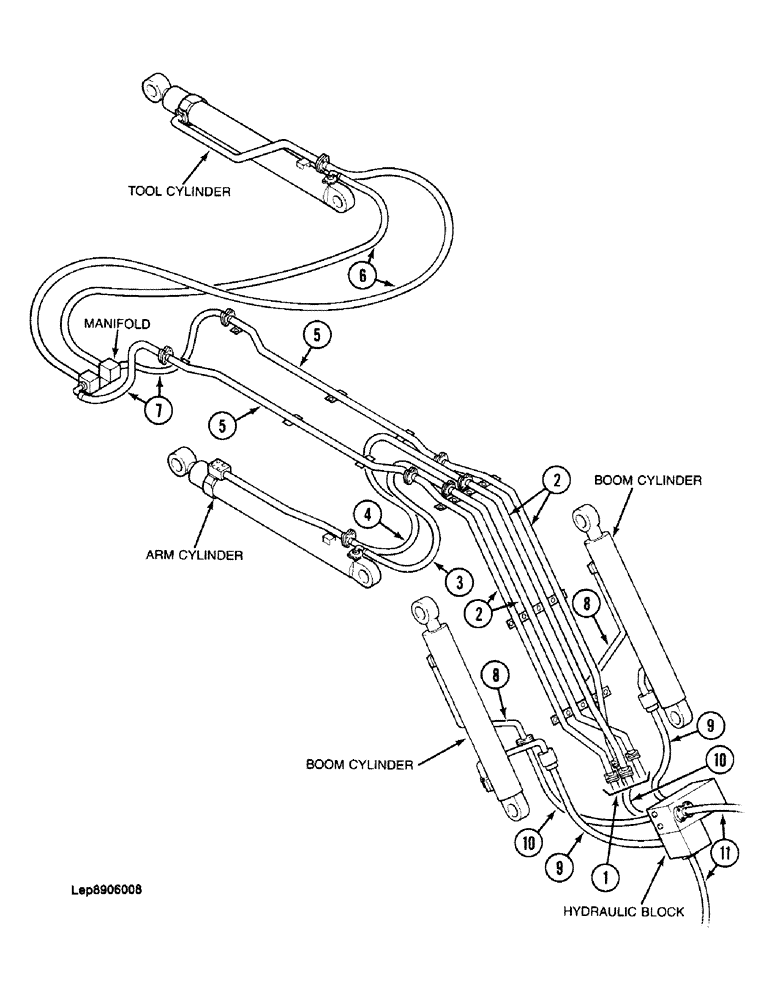

Запчасти Case 688 (1-26) - PICTORIAL INDEX, ATTACHMENT HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hoses, Arm and Tools Cylinders, from Attachment Control Valve, Page 8C-3, 8C-5

1шт.

2

Tube Assembly, Arm and Tool Cylinders, Page 8G-13

1шт.

3

Hose, Tube Assembly to Arm Cylinder, Page 8G-13

1шт.

4

Hose, Tube Assembly to Arm Cylinder, Page 8G-13

1шт.

5

Tube, Upper Port, Tool Cylinder, Page 8G-13

1шт.

6

Hose, Manifold to Tool Cylinder, Page 8G-13

1шт.

7

Hose, Tube to Upper Port to Manifold, Page 8G-13

1шт.

8

Tube, Boom Cylinders, Page 8G-3

1шт.

9

Hoses, Manifold to Boom Cylinders, Page 8G-3

1шт.

10

Hoses, Manifold to Tubes of Boom Cylinders, Page 8G-3

1шт.

11

Hoses, from Attachment Control Valve, Page 8C-3, 8C-5, 8G-5

1шт.
