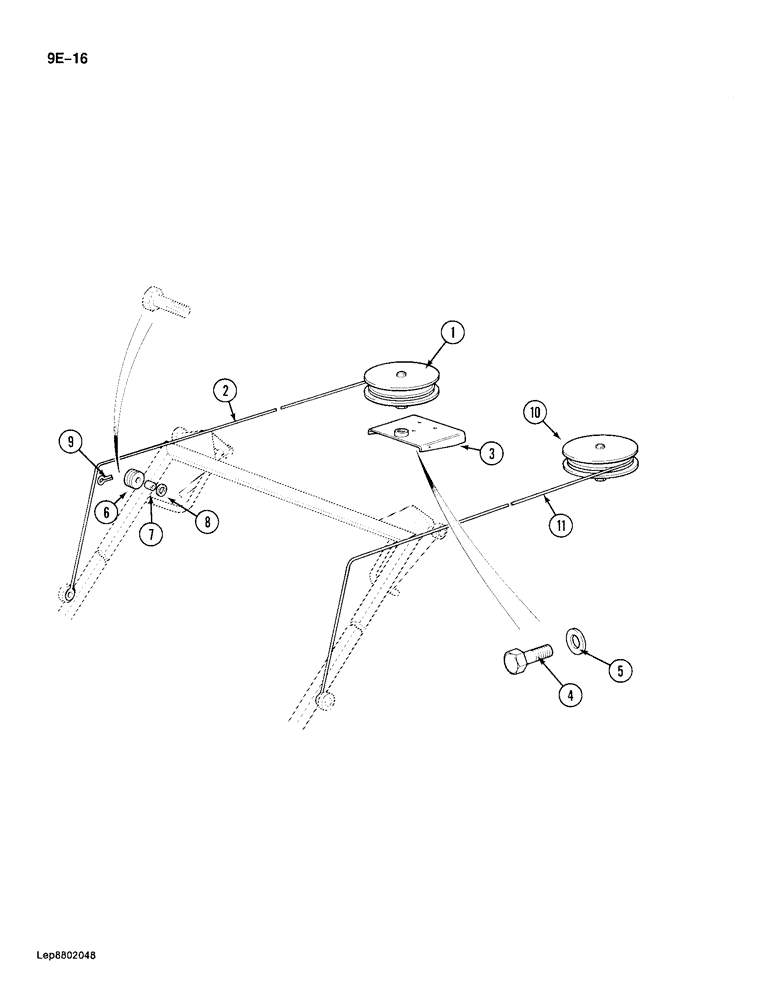

Запчасти Case 688 (9E-16) - WINDSHIELD OPENING PARTS (09) - CHASSIS

P8443828

CAB

AND SPRING ASSEMBLY - windshield opening, right-hand, Includes: Ref. 1 - 11

1шт.

1

P5242727

CABLE WINDER

CABLE AND SPRING ASSEMBLY - windshield opening, right-hand, Includes: Ref. 2

1шт.

2

P9847252

CABLE

- windshield, opening

1шт.

3

P4127158

SUPPORT

BRACKET - mounting, cable and spring

2шт.

4

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, mounting bracket

4шт.

5

P3528794

WASHER

SPACER - 6 mm thick, bracket bolt

4шт.

6

P538589

PULLEY

- windshield cable

2шт.

7

P29299

SELF LUB RING

BUSHING - cable pulley

2шт.

8

P34611

WASHER

- flat, 10 mm, cable pulley

2шт.

9

P35512

SPLIT PIN

COTTER PIN - 2 mm x 30 mm, cable pulley

2шт.

10

P5242728

CABLE WINDER

CABLE AND SPRING ASSEMBLY - windshield opening, left-hand

1шт.

11

P9847252

CABLE

- windshield, opening

1шт.
