Запчасти Case 688 (9E-04) - CAB, CAB FRAME AND RELATED PARTS, CONTD (09) - CHASSIS

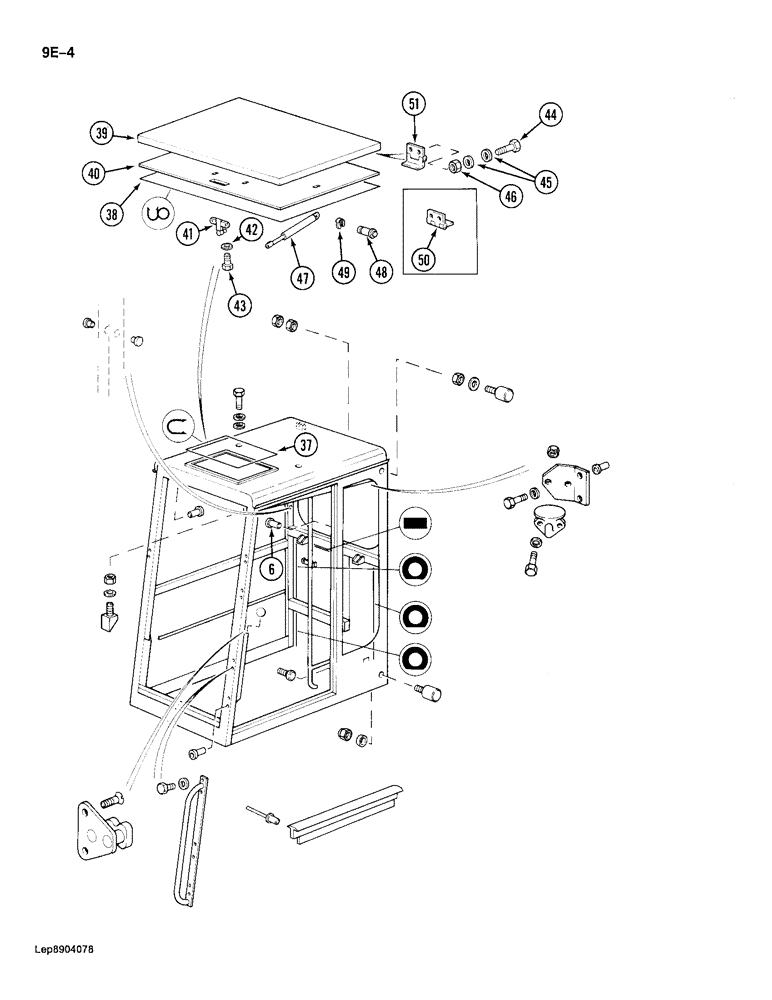

Схема запчастей Case 688 - (9E-04) - CAB, CAB FRAME AND RELATED PARTS, CONTD (09) - CHASSIS

Артикул

Название

Примечание

Количество

P8443828

CAB

ASSEMBLY - excavator, Includes: Ref. 37 - 51 on this figure & Ref. 1 - 35 on Figure 9E-2

1шт.

37

REF

INSTRUCTION

SEAL - cab roof to panel, 82-3/4" long, cut from P303112

1шт.

38

REF

INSTRUCTION

SEAL - at roof panel, 82-3/4" long, cut from P303167

1шт.

39

P8443834

HATCH

PANEL - roof, access cover

1шт.

40

P4241478

CLOTHES

INSULATION - access cover

1шт.

41

P1352049

LOCK

LATCH - panel open

1шт.

42

P35001

WASHER

- flat, 6 mm

2шт.

43

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

2шт.

44

P32610

SCREW

BOLT - hex, 4 mm x 16 mm

2шт.

45

P34603

WASHER

- flat, 4 mm

8шт.

46

P34107

NUT M- hex, 4 mm

4шт.

47

P3036997

GAS STRUT

GAS SPRING - panel control, adaptation with item 50, if used

2шт.

47

P3836915

GAS STRUT

GAS SPRING - panel control, adaptation with item 51, if used

2шт.

48

P6427819

PIN

- gas spring

4шт.

49

P1352050

SHAFT LOCK

CLIP - retainer

4шт.

50

P1352048

HINGE

- roof panel, if used

2шт.

51

P1136610

HINGE

- roof panel, if used

2шт.

Выбрано товаров: 17
