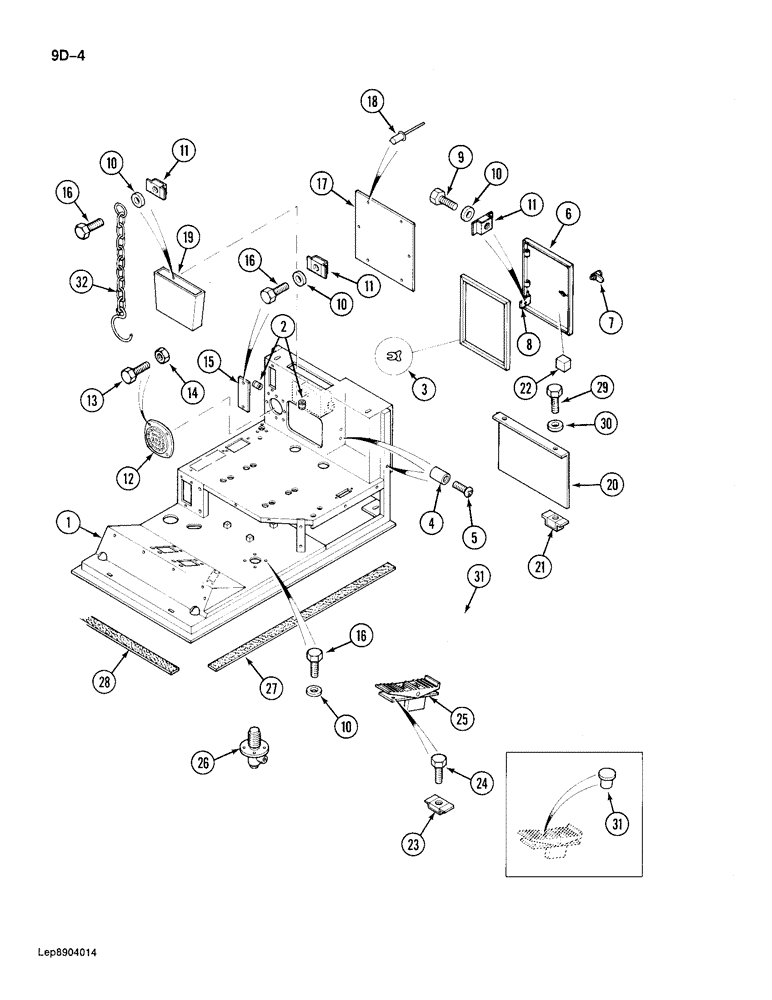

Запчасти Case 688 (9D-04) - OPERATOR COMPARTMENT, ACCESS DOOR AND COVERS (09) - CHASSIS

1

P8143875

FLOOR

PLATFORM - mounting, seat and floor plate (Includes: Ref. 17 & 18)

1шт.

2

P1241417

GROMMET

- platform, electrical wiring

2шт.

3

P2047038

WINDOW FRAME

SEAL - access door (Replaces P1347094)

1шт.

4

P1329965

STOP

- panel (Replaces P1329946)

2шт.

5

P32530

SCREW

- slotted head, M4 x 10 mm

2шт.

6

P7043893

DOOR

- access, electrical circuit board

1шт.

7

P1352032

LOCK ASSY

LOCK - access door

1шт.

P1352009

KEY

- lock, set of 2 keys

1шт.

8

P736695

FIXED HINGE

HINGE - access door

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

P3528799

WASHER

SPACER - bolt, 4 mm thick

14шт.

11

P1634573

NUT

- square, cage type

8шт.

12

P2340458

SIEVE

GRILLE - heater (P.I.N. from 11601 to XXXXX), Includes: Ref. 13 & 14, Serial Range: 11601-XXXXX

1шт.

13

P32428

SCREW

- slotted, 4 mm x 16 mm

4шт.

14

P34107

NUT - hex, 4 mm

4шт.

15

P3240442

LARGE PLATE

PLATE - cover, platform (Replaces P3122821)

1шт.

16

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

10шт.

17

P2023254

HOOD

COVER - access, platform

1шт.

18

P35418

RIVET

POP RIVET - 8 mm x 17 mm

6шт.

19

P3626323

BOX

- manual (Replaces P7646231)

1шт.

20

P4825672

HOOD

BRACKET - support, rear platform

1шт.

21

P1334574

NUT

- retainer, cage type, 6 mm

2шт.

22

REF

INSTRUCTION

SEAL - door, 1-1/8" inch long, cut from P3123, use P3578 adhesive from mounting (P.I.N. form, Serial Range: 11601-11660)

1шт.

22

P4441446

SEAL - door (P.I.N. from 11661 and after)

1шт.

23

P1334571

NUT

- square, cage type, 8 mm

8шт.

24

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figure 8D-10

2-3шт.

26

P2843549

PUMP, HYDRAULIC

PUMP ASSEMBLY - foot, control circuit, see Figure 8D-6 for hydraulic circuit

1шт.

27

REF

INSTRUCTION

SEAL - platform, 61-1/4 inch long, cut from P3128, use P3578 adhesive for mounting

2шт.

28

REF

INSTRUCTION

SEAL - platform, 34-7/8 inch long, cut from P3128, use P3578 adhesive for mounting

2шт.

29

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

2шт.

30

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

31

P3037430

PLASTIC PLUG

PLUG - plastic, control pedals, if used

4шт.

32

P2631335

CHAIN (AG)

CHAIN - manual

1шт.
